Delta DRS-5V50W1AZ 5V 30W 6A 導軌型電源 SYNC Series

Model	Description
DRS-5V50W1AR	Without DC OK contact

Model	Description
DRS-5V50W1AR	Without DC OK contact

資源下載

Datasheet

Uploaded on 22-Nov-2021

Manual

Uploaded on 23-Sep-2021


Uploaded on 05-Jun-2024

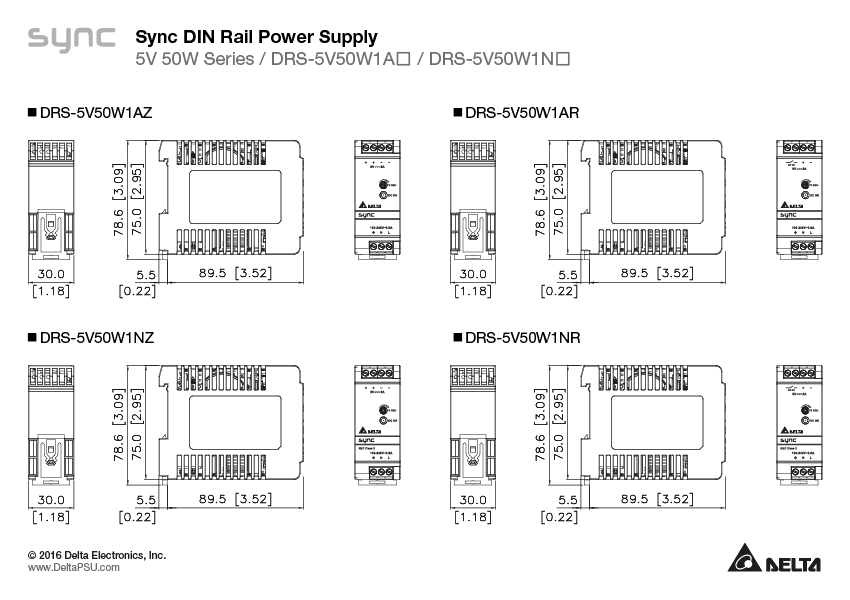

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

Uploaded on 09-Apr-2024

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Apr-2020

UKCA

Uploaded on 22-Nov-2021

Uploaded on 09-Apr-2024

GUI Software

Tech Specs

輸出電流

輸出電壓

輸出電壓調整範圍

5.0-5.5Vdc

輸出功率

30W

線電壓調整率

< 0.5% (@ 85-264Vac, 100% load)

負載調整率

< 1.0% (@ 85-264Vac, 0-100% load)

紋波電壓

< 50mVpp @ > 0°C to 70°C
< 100mVpp @ 0°C to -20°C

開機時間

< 2,000ms @ 115Vac (100% load)
< 1,000ms @ 230Vac (100% load)

保持時間

> 20ms @ 115Vac (100% load)
> 100ms @ 230Vac (100% load)

動態回應

± 5% @ 85-264Vac input, 10-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz)

電容性負載啟動

3,000μF Max

升壓時間

< 30ms @ nominal input (100% load)

額定輸入電壓

100-240Vac

輸入電壓範圍

85-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

直流輸入電壓範圍

120-375Vdc

輸入電流

< 0.6A@115Vac, < 0.4A @ 230Vac

100% 負載效率

> 82%@ 115Vac & 230Vac

浪湧電流

< 30A @ 115Vac, < 60A @ 230Vac

漏電流

< 0.75 mA @ 264 Vac

功率損耗

0% load: < 0.7W @ 115Vac & 230Vac
100% load: < 7.0W @ 115Vac & 230Vac

底架 / 外殼 Plastic
指示燈 Green LED (DC OK)
冷卻方式 Convection
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） -
輸入/輸出端 -
信號 -
安裝導軌 -
電線 -
保護結構 -
端子台 -
重量 0.16 kg (0.35 lb)	尺寸 75 x 30 x 89.5 mm 2.95” x 1.18” x 3.52”

振動測試（運行狀態）

IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 1 octave per min; 60 min per axis for all X, Y, Z directions

衝擊測試（運行狀態）

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms; 1 time in X axis

運行溫度

-20°C to +70°C (Cold start at -40°C @ 40% load)

儲存溫度

-40°C to +85°C

功率降額

-10°C to -20°C de-rate power by 2% / °C
> 55°C de-rate power by 3.33% / °C

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction, 9 times in total

振動測試（非運行狀態）

IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions

運行高度

0 to 2,000 Meters (6,560 ft.)

污染程度

過壓保護

< 7.245V, SELV Output, Latch Mode

超負載/過電保護

105~125% of rated load current, Foldback Mode (continuous current, voltage drops), Auto-recovery when the fault is removed

過溫保護

< 75°C Surrounding Air Temperature @ 100% load, Latch Mode

短路保護

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

防護等級

IP20

電擊防護等級

Class I with PE connection

MTBF

Telcordia SR-332: > 700,000 hrs, I/P: 115Vac & 230Vac, O/P: 100% load, Ta: 25°C
MIL-HDBK-217F: 165,300 hrs, I/P: 115Vac & 230Vac, O/P: 100% load, Ta: 25°C

預計最長使用壽命

10 years (115ac & 230Vac, 50% load @ 40°C)

電氣安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1, UL 62368-1, CSA C22.2 No. 60950-1 (File No. E191395)
CB Scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 3.0 KVac
Input to Ground: 3.0 KVac
Output to Ground: 0.5 KVac

工業控制設備

UL/cUL listed: UL 508 and CSA C22.2 No. 107.1-01 (File No. E315335)

安全特低電壓

SELV (IEC 60950)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

輻射與傳導

Generic Standards: EN/BS EN 61000-6-3, EN/BS EN 61000-6-4, CISPR 32, EN/BS EN 55032, EN/BS EN 55011, FCC Title 47: Class B

抗擾度

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-1, EN/BS EN 61000-6-2

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A

電壓波動和閃變

IEC/EN/BS EN 61000-3-3

通用用途之部件供電

EN 61204-3
