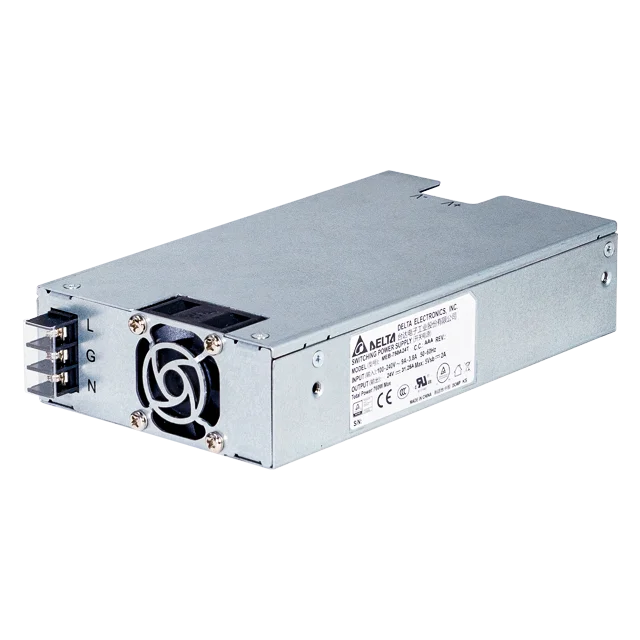

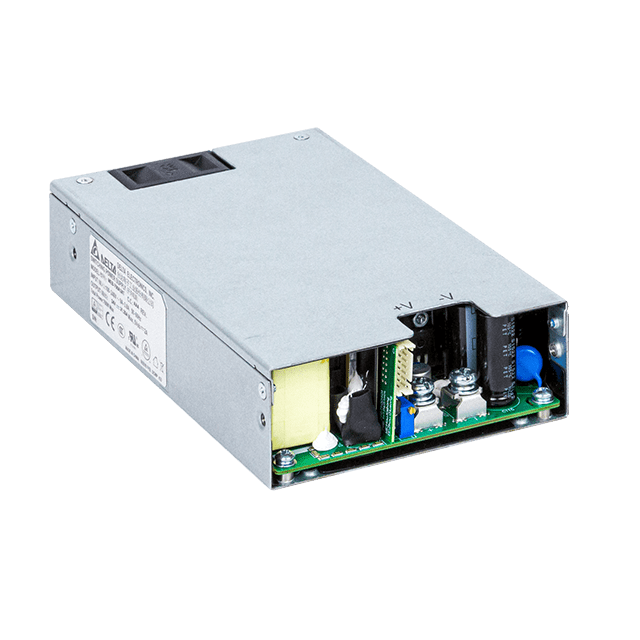

MEB-750A24T

封閉式電源

MEB 系列

MEB-750A24T

輸出電壓

24V

輸出功率

750W

輸出電流

0-31.25A

輸入電壓範圍

85-264Vac

尺寸 (L x W x H)

177.8 x 101.6 x 40 mm

7.00” x 4.00” x 1.57”

重量

1.1 kg (2.43 lb)

亮點與特色

Up to 750 Watt in 4"x7"x1.575" Package
Up to 17W/inch³ Power Density
Full Power from 90V to 264V
Full Power up to 50°C Ambient
Up to 500KHrs MTBF
2MOPP Isolation
Suited for Type BF Medical Products.
5V/2A Standby Output
Current Sharing
Conformal Coating
Class B Conducted and Radiated EMI
IEC60601-1-2 4th Edition Immunity Compliance
Normal and Reversed Option for Remote On/Off and Power Good Signal
Voltage Trimming

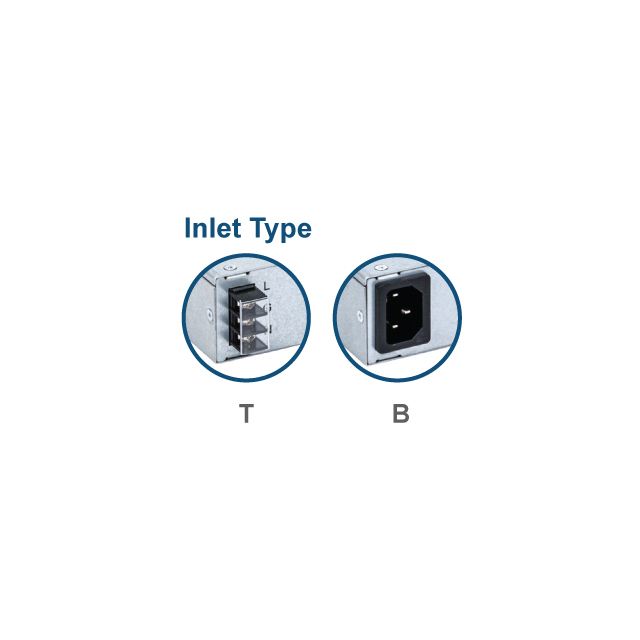

Optional Models

Model	Description
MEB-750A24B	Inlet Type: C14 inlet

應用領域

封閉式電源

MEB 系列

MEB-750A24T

亮點與特色

Up to 750 Watt in 4"x7"x1.575" Package
Up to 17W/inch³ Power Density
Full Power from 90V to 264V
Full Power up to 50°C Ambient
Up to 500KHrs MTBF
2MOPP Isolation
Suited for Type BF Medical Products.
5V/2A Standby Output
Current Sharing
Conformal Coating
Class B Conducted and Radiated EMI
IEC60601-1-2 4th Edition Immunity Compliance
Normal and Reversed Option for Remote On/Off and Power Good Signal
Voltage Trimming

輸出電壓

24V

輸出功率

750W

輸出電流

0-31.25A

輸入電壓範圍

85-264Vac

尺寸

177.8 x 101.6 x 40 mm

7.00” x 4.00” x 1.57”

重量

1.1 kg (2.43 lb)

應用領域

Optional Models

Model	Description
MEB-750A24B	Inlet Type: C14 inlet

資源下載

Datasheet

Uploaded on 20-Mar-2024


Uploaded on 05-Jun-2024

Mechanical Drawing

Uploaded on 04-Jan-2021

.DXF

Uploaded on 26-Aug-2020

.STP

Uploaded on 26-Aug-2020

認證

Uploaded on 18-Oct-2023

CCC

Uploaded on 30-Nov-2023

CE & UKCA

Uploaded on 16-Aug-2021

cTUVus

Uploaded on 24-Jul-2020

Uploaded on 01-Dec-2023

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 30-Nov-2023

Uploaded on 20-Dec-2021

GUI Software

Tech Specs

輸出電流

0-31.25A

輸出電壓

24V

輸出功率

750W

線電壓調整率

負載調整率

開機時間

2000ms with AC turn on

保持時間

12 ms @ 100% load, with nominal input range

動態回應

± 5% @ with 50% load change

電容性負載啟動

6000uF

波紋與噪音

1% pk-pk Vrated@ rated load

升壓時間

<50ms

額定輸入電壓

100-240Vac

輸入電壓範圍

85-264Vac

額定輸入頻率

50-60 Hz

輸入頻率範圍

47-63Hz

輸入電流

9 A

100% 負載效率

Up to 94%

浪湧電流

40 A @ 264 Vac, cold start

功率因數

>0.95 @ rated load

底架 / 外殼 Enclosed
指示燈 -
冷卻方式 -
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） -
輸入/輸出端 -
信號 -
安裝導軌 -
電線 -
保護結構 -
端子台 -
重量 1.1 kg (2.43 lb)	尺寸 177.8 x 101.6 x 40 mm 7.00” x 4.00” x 1.57”

運行溫度

Absolute Maximum/Minimum Rating.
-20°C to +70°C. Linear power derate from 100% load at50°C, to 50% load at 70°C

儲存溫度

-40°C to +85°C

運行濕度

5-95% RH (Non-Condensing)

衝擊測試（非運行狀態）

50 G, 11 ms, 3 shocks for each direction

振動測試（非運行狀態）

5-500 Hz, 2 Grms, 15 minute for each three axis

運行高度

Up to 5,000 meters (up to 16,400 feet or 106-54kPa)

過壓保護

Main output 145% of rated normal voltage, Latch Mode
Standby 125% of rated voltage, Latch Mode

超負載/過電保護

Main output 130% of rated current for over 750ms max
Standby 3.2A max with Hiccup Mode(Non-Latching, Auto-Recovery)

過溫保護

Latch Mode for Main output

短路保護

Hiccup Mode for Main output and Standby (Non-Latching, Auto-Recovery)

MTBF

500 Khrs based on Telecordia SR-332

預計最長使用壽命

Operating life (Minimum) at 115 Vac, 750 W, 25°C: 26,280 hrs

電氣安全

IEC 60950-1 CB report
IEC 62368-1 CB report
TUV EN 62368-1
TUV EN 60950-1
UL 62368-1 and CAN/CSA C22.2 No. 62368-1
CCC GB 17625.1; GB 4943.1; GB/T 9254.1
KC/KCC (for 24V)

Home Appliance:
IEC60335-1 CB report
IEC61558-1 /-2-16 CB report
TUV EN 60335-1
TUV EN 61558-1 /-2-16

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015

醫療安全

IEC 60601-1 CB report
TUV EN 60601-1
ANSI/AAMI ES 60601-1+CAN/CSA-C22.2 No.60601-1

電隔離

Input to/Output (2XMOPP): 4000 Vac
Input to/Ground (1XMOPP): 1500 Vac
Output to/Ground (1XMOPP): 1500 Vac (Type BF application rated)

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016, Medical Devices Regulations 2002 (UK MDR 2002)

輻射與傳導

EN/BS EN 55011, EN/BS EN 55032: Class B

諧波電流排放

IEC61000-3-2 Meet Class D limit

電壓波動和閃變

IEC61000-3-3

ESD 抗擾度

IEC61000-4-2

輻射抗擾度

IEC61000-4-3

EFT

IEC61000-4-4

電湧

IEC61000-4-5

傳導抗擾度

IEC61000-4-6

磁場

IEC61000-4-8
