PJ-24V100W

基板型電源

PJ 系列

PJ-24V100W

輸出電壓

24V

輸出功率

103W

輸出電流

4.3A

輸入電壓範圍

85-264Vac

尺寸 (L x W x H)

155 x 62 x 33 mm (Open Frame)
185 x 72 x 45 mm (Enclosed)
6.10" x 2.44" x 1.31" (Open Frame)
7.28" x 2.83" x 1.77" (Enclosed)

重量

0.26 kg (Open Frame)
0.42 kg (Enclosed) (0.57 lb)

亮點與特色

全球通用交流輸入（85Vac - 264Vac）
低浪湧電流／低接地漏電流
高轉換效率及高功率因數利於節能
符合諧波電流 IEC/EN/BS EN 61000-3-2, Class A
PCBA 塗層保護，防化學和粉塵污染
遠程遙控開/關（100W 可選）
多種配置選項：基板型電源、L 型框架電源、內置機殼型電源
長壽電容

** NRND **

PJ-24V100WBNA, PJ-24V100WBRA

推薦機種: PJ-24V100WERA

PJ-24V100WCNA, PJ-24V100WCRA, PJ-24V100WLNA, PJ-24V100WLRA

推薦機種: PJ-24V100WDRA

Optional Models

型號	Description
PJ-24V100WBNA	Open Frame
PJ-24V100WBRA	Open Frame, remote ON/OFF
PJ-24V100WLNA	L Frame
PJ-24V100WLRA	L Frame, remote ON/OFF
PJ-24V100WCNA	Enclosed
PJ-24V100WCRA	Enclosed, remote ON/OFF

應用領域

基板型電源

PJ 系列

PJ-24V100W

亮點與特色

全球通用交流輸入（85Vac - 264Vac）
低浪湧電流／低接地漏電流
高轉換效率及高功率因數利於節能
符合諧波電流 IEC/EN/BS EN 61000-3-2, Class A
PCBA 塗層保護，防化學和粉塵污染
遠程遙控開/關（100W 可選）
多種配置選項：基板型電源、L 型框架電源、內置機殼型電源
長壽電容

** NRND **

PJ-24V100WBNA, PJ-24V100WBRA

推薦機種: PJ-24V100WERA

PJ-24V100WCNA, PJ-24V100WCRA, PJ-24V100WLNA, PJ-24V100WLRA

推薦機種: PJ-24V100WDRA

輸出電壓

24V

輸出功率

103W

輸出電流

4.3A

輸入電壓範圍

85-264Vac

尺寸

155 x 62 x 33 mm (Open Frame)
185 x 72 x 45 mm (Enclosed)
6.10" x 2.44" x 1.31" (Open Frame)
7.28" x 2.83" x 1.77" (Enclosed)

重量

0.26 kg (Open Frame)
0.42 kg (Enclosed) (0.57 lb)

應用領域

Optional Models

型號	Description
PJ-24V100WBNA	Open Frame
PJ-24V100WBRA	Open Frame, remote ON/OFF
PJ-24V100WLNA	L Frame
PJ-24V100WLRA	L Frame, remote ON/OFF
PJ-24V100WCNA	Enclosed
PJ-24V100WCRA	Enclosed, remote ON/OFF

資源下載

Datasheet

Uploaded on 23-Mar-2023

Manual

Uploaded on 22-Apr-2020

Manual

Uploaded on 22-Apr-2020


Uploaded on 23-Jun-2025

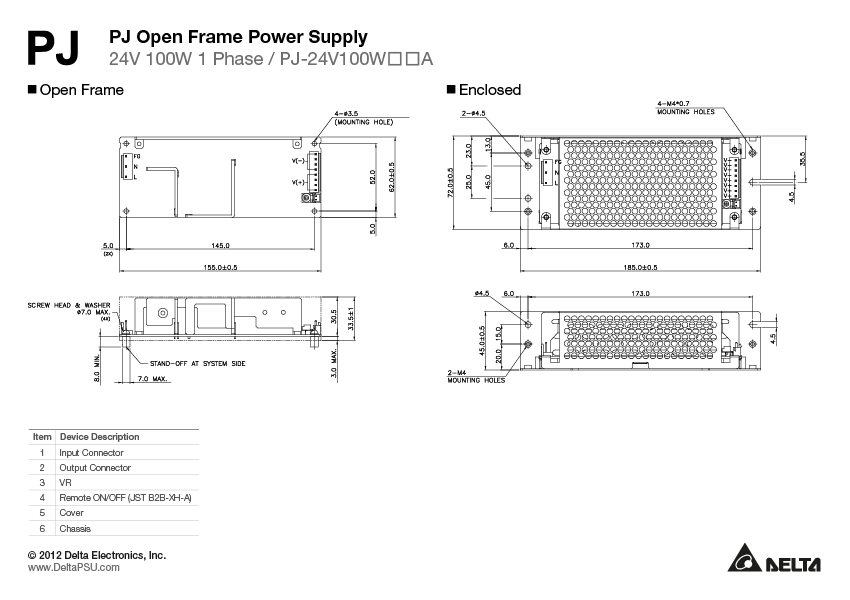

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 07-Jul-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 23-Nov-2020

Uploaded on 10-Jan-2021

GUI Software

Tech Specs

輸出電流

4.3A

輸出電壓

24V

輸出電壓調整範圍

21.6-26.4Vdc

輸出功率

103W

線電壓調整率

< 96mV

負載調整率

< 150mV

開機時間

500ms typ. @ 100Vac (100% load)

保持時間

20ms Typ. @ 100Vac (100% load)

動態回應

± 5% @ 0-50% load and 50-100% load (Slew Rate: 0.1A/µS)

電容性負載啟動

8,000µF Max

額定輸入電壓

100-240Vac

輸入電壓範圍

85-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

輸入電流

1.30 A Max. @ 100 Vac, 0.65 A Max. @ 200 Vac

100% 負載效率

86.0% typ. @100Vac,
89.0% typ. @200Vac

浪湧電流

15A typ. @ 100Vac,
30A typ. @ 200Vac

功率因數

0.99 @ 100Vac,
0.98 @ 200Vac

漏電流

0.2mA @ 100Vac,
0.4mA @ 230Vac

底架 / 外殼 SGCC
指示燈 -
冷卻方式 Convection
輸入端 JST B3P5-VH (LF)(SN)
輸出端 JST B8P5-VH (LF)(SN)
信號端 -
聲壓級（SPL） < 25dBA
輸入/輸出端 -
信號 -
安裝導軌 -
電線 AWG 22-18
保護結構 -
端子台 -
重量 0.26 kg (Open Frame) 0.42 kg (Enclosed) (0.57 lb)	尺寸 155 x 62 x 33 mm (Open Frame) 185 x 72 x 45 mm (Enclosed) 6.10" x 2.44" x 1.31" (Open Frame) 7.28" x 2.83" x 1.77" (Enclosed)

振動測試（運行狀態）

IEC60068-2-6, 10Hz to 55Hz@19.6m/S² (2G); 3min period, 60 min per axis for all X, Y, Z direction

運行溫度

-10°C to +70°C

儲存溫度

-25°C to +75°C

運行濕度

5 to 90% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC60068-2-27,196.1m/S² (20G), 11ms, once along X, Y, and Z axis

運行高度

0 to 5,000 Meters (16,400 ft)

污染程度

過壓類別

過壓保護

27.6-33.6V, Latch Mode

超負載/過電保護

> 105% of rated load current, Hicc-up Mode, Non-Latching (Auto-Recovery)

過溫保護

Latch Mode

短路保護

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

電擊防護等級

Class I with Primary Earth connection

MTBF

> 200,000 hrs. as per JEITA RCR-9102B

預計最長使用壽命

10 years (115Vac, 50% load @ 40°C)

電氣安全

TUV Bauart:EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EC

電隔離

Input to Output: 3.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 0.5 KVac

安全特低電壓

SELV (EN 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations
2016 and Electromagnetic Compatibility Regulations 2016

輻射與傳導

(CE & RE)
CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A

電壓波動和閃變

IEC/EN/BS EN 61000-3-3
