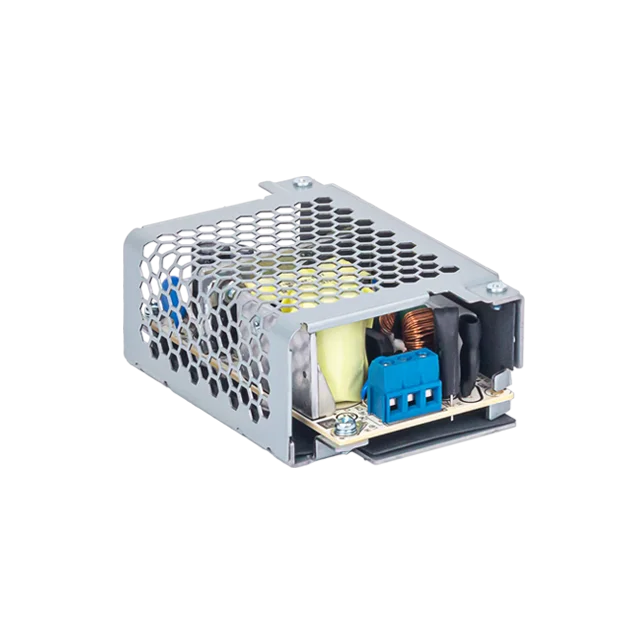

PJU-13V60WCBA

基板型電源

PJU 系列

PJU-13V60WCBA

輸出電壓

13.8V

輸出功率

60W

輸出電流

4.3A

輸入電壓範圍

90-264Vac

尺寸 (L x W x H)

103.4 x 62 x 37 mm

4.07” x 2.44” x 1.46”

重量

0.25 kg (0.55 lb)

亮點與特色

全球通用 AC 輸入電壓範圍
AC 輸入中斷至電池運行零轉換時間
防電池極性反接
內置診斷式監控用於監測 AC OK 及低電池狀態
過壓 / 過流 / 過溫 / 短路保護
緩衝（電池放電）模式運行下內置過流及短路保護

Optional Models

Model	Description
PJU-13V60WCAA	Enclosed, without Signal, terminal block
PJU-13V60WCAB	Enclosed, without Signal, JST connector
PJU-13V60WCAC	Enclosed, without Signal, Molex connector
PJU-13V60WCBB	Enclosed, JST connector
PJU-13V60WCBC	Enclosed, Molex connector

應用領域

資源下載

Datasheet

Uploaded on 09-Sep-2022

Manual

Uploaded on 02-Jun-2021


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

Uploaded on 22-Apr-2020

CCC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 22-Apr-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 04-Aug-2021

Uploaded on 26-Nov-2024

GUI Software

Tech Specs

輸出電流

4.3A

輸出電壓

13.8V

輸出電壓調整範圍

13.52-14.00V

輸出功率

60W

線電壓調整率

< 0.5% (90-264Vac @ 100% load)

負載調整率

< 1.0% (90-264Vac @ 0-100% load)

紋波電壓

< 100mVpp

開機時間

< 3,000ms @ 115Vac (100% load),
< 1,500ms @ 230Vac (100% load)

保持時間

> 10ms @ 115Vac (100% load)

動態回應

± 5%, @ 115-264Vac input, 0-100% load
(Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 1kHz)

電容性負載啟動

3,600μF at 13.8V/4.3A

升壓時間

< 50ms @nominal input

額定輸入電壓

100-240Vac

輸入電壓範圍

90-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

輸入電流

< 1.2A @ 115Vac, < 0.8A @ 230Vac

100% 負載效率

> 85.0% @ 115Vac
> 86.0% @ 230Vac

浪湧電流

(Cold Start)
< 60A @ 115Vac & 230Vac

漏電流

IEC/EN 60950-1: < 0.5mA / 1.0mA @ 264Vac
IEC/EN 62368-1: < 1.0mA / 2.0mA @ 264Vac

功率損耗

No Load:
< 0.30W @ 115Vac
< 0.45W @ 230Vac

100% Load:
< 13W @ 115Vac & 230Vac

底架 / 外殼 SECC
指示燈 Green LED: DC OK
冷卻方式 Convection
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） < 25dBA (1 Meter from power supply)
輸入/輸出端 -
信號 -
安裝導軌 -
電線 -
保護結構 -
端子台 -
重量 0.25 kg (0.55 lb)	尺寸 103.4 x 62 x 37 mm 4.07” x 2.44” x 1.46”

振動測試（運行狀態）

IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions

衝擊測試（運行狀態）

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms; 1 time in X axis

運行溫度

-20°C to +70°C

儲存溫度

-40°C to +85°C

功率降額

See datasheet

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction, 9 times in total

振動測試（非運行狀態）

IEC 60068-2-6, Random: 5-500Hz; 2.09Grms; 20 min per axis for all X, Y, Z directions

運行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

過壓類別

過壓保護

<16V, Latch Mode

超負載/過電保護

105-160% of rated load current, Hiccup mode, Non-Latching (Auto recovery)

過溫保護

Latch mode

短路保護

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

電擊防護等級

Class I with Primary Earth connection

電池極性保護

Yes

電池電壓保護錯誤

Yes, 16Vdc Max will not cause damage to the unit

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac & 230Vac, Ta: 25°C
O/P: 13.8V/4.3A for 13V model and 27.6V/2.15A for 27V model

預計最長使用壽命

10 years (115Vac & 230Vac, 50% load @ 35°C)

電氣安全

SIQ Bauart: EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CCC: GB4943.1
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 3.0KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5KVac

安全特低電壓

SELV (EN 60950-1, EN 62368-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

輻射與傳導

Generic Standards: CISPR 32, EN/BS EN 55032,
FCC Title 47: Class B

抗擾度

Generic Standards: EN/BS EN 55024

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A, GB17625.1

電壓波動和閃變

IEC/EN/BS EN 61000-3-3

額定電池電壓

12 Vdc

電池容量

3.2 AH – 15 AH

電池充電模式

CC-CV mode (constant current-constant voltage)

充電電壓結束

The unit always charges battery to a fixed voltage value
