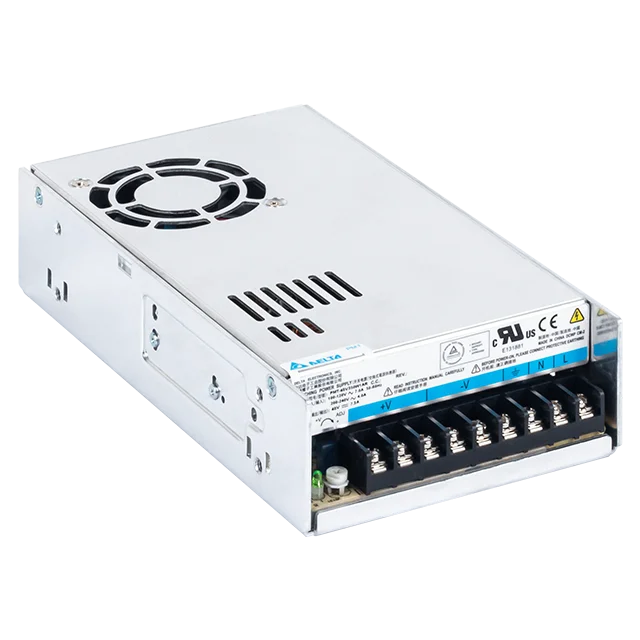

PMT-48V350W1AR

平板型電源

PMT 系列

PMT-48V350W1AR

輸出電壓

48V

輸出功率

350W

輸出電流

7.3A

輸入電壓範圍

90-132Vac, 180-264Vac (Selectable by Switch)

尺寸 (L x W x H)

215 x 115 x 50 mm

8.46” x 4.53” x 1.97”

重量

0.83 kg (1.83 lb)

亮點與特色

交流輸入電壓選擇開關
鋁制外殼和底架全方位防腐蝕
內置自動風扇控速電路
MTBF > 700,000 hrs Telcordia SR-332
短路 / 過壓 / 過負載 / 過溫保護

Optional Models

Model	Description
PMT-48V350W1AK	Front face connector
PMT-48V350WARA	Terminal block with connector cover
PMT-48V350W1AKA	Front face with connector cover

應用領域

資源下載

Datasheet

Uploaded on 27-Jun-2022

Manual

Uploaded on 22-Apr-2020


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 18-Dec-2020

.DXF

Uploaded on 18-Dec-2020

.STP

Uploaded on 18-Dec-2020

認證

Uploaded on 18-Jan-2023

CE & UKCA

Uploaded on 21-Apr-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 21-Apr-2021

GUI Software

Tech Specs

輸出電流

7.3A

輸出電壓

48V

輸出電壓調整範圍

43.2-52.8Vdc

輸出功率

350W

線電壓調整率

± 0.5% typ.

負載調整率

± 1% typ.

紋波電壓

< 240mVpp

開機時間

< 1000ms @ nominal input (100% load)

保持時間

16ms typ. @ 115Vac, 20ms typ. @ 230Vac (100% load)

動態回應

± 5% @ 10-50% load and 50-100% load

電容性負載啟動

8,000μF Max

升壓時間

< 50ms @ nominal input (100% load)

額定輸入電壓

100-120Vac, 200-240Vac (Selectable by Switch)

輸入電壓範圍

90-132Vac, 180-264Vac (Selectable by Switch)

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

輸入電流

7.00A typ. @115Vac, 4.00A typ. @ 230Vac

100% 負載效率

87.5% typ. @ 230Vac

浪湧電流

40A typ. @ 115Vac, 60A typ. @ 230Vac

漏電流

< 3.5mA @ 240Vac

底架 / 外殼 Aluminium
指示燈 Green LED (DC OK)
冷卻方式 Forced Cooling
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） < 52dBA
輸入/輸出端 -
信號 -
安裝導軌 -
電線 AWG 22-12
保護結構 -
端子台 -
重量 0.83 kg (1.83 lb)	尺寸 215 x 115 x 50 mm 8.46” x 4.53” x 1.97”

振動測試（運行狀態）

IEC 60068-2-6, Sine Wave: 10Hz to 150Hz @ 25m/S² (2.5G peak); 90 min per axis for all X, Y, Z direction

運行溫度

-10°C to +70°C

儲存溫度

-25°C to +85°C

功率降額

> 50°C de-rate power by 2.5% / °C
< 100Vac de-rate power by 3% / V
< 200Vac de-rate power by 3% / V

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3 times per direction, 18 times in total

振動測試（非運行狀態）

IEC 60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms peak; 20 min per axis for all X, Y, Z direction

運行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

過壓類別

過壓保護

57.6V~67.2V, Latch Mode

超負載/過電保護

105%~150% of rated load current, Hiccup Mode,
Non-Latching (Auto-Recovery)

過溫保護

Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)

短路保護

Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)

電擊防護等級

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 100Vac, O/P: 100% load, Ta: 35°C

預計最長使用壽命

10 years (115Vac & 230Vac, 50% load @ 40°C)

電氣安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme:IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and
Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 3.0KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5KVac

安全特低電壓

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

輻射與傳導

(CE&RE)
CISPR 32, EN/BS EN 55032, EN 55011, FCC Title 47: Class B

抗擾度

EN/BS EN 55024

電壓波動和閃變

IEC/EN/BS EN 61000-3-3
