PMU-27V155WCCA

平板型電源

PMU 系列

PMU-27V155WCCA

輸出電壓

27.6V

輸出功率

151W

輸出電流

4A,1.5A

輸入電壓範圍

90-132Vac, 180-264Vac (Selectable by Switch)

尺寸 (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

重量

0.60 kg (1.32 lb)

亮點與特色

交流輸入電壓選擇開關
流正常狀態 LED 指示燈（綠色）、電池接反報警（紅色）
遇交流斷電無間隔切換至電池操作
符合諧波電流 IEC/EN 61000-3-2, Class A 標準
平均無故障運行時間 (MTBF) > 700,000 小時，Telcordia SR-332標準
交流正常、直流正常及低電池信號監控
過壓 / 過流 / 過溫 / 短路保護
緩衝（放電）模式下內置式過流及短路保
通過 IEC/EN/UL 62368-1 認證

** NRND **

PMU-27V155WLBA, PMU-27V155WLCA

Optional Models

型號	Description
PMU-27V155WCBA	Enclosed, without Signal
PMU-27V155WLCA
PMU-27V155WLBA

應用領域

平板型電源

PMU 系列

PMU-27V155WCCA

亮點與特色

交流輸入電壓選擇開關
流正常狀態 LED 指示燈（綠色）、電池接反報警（紅色）
遇交流斷電無間隔切換至電池操作
符合諧波電流 IEC/EN 61000-3-2, Class A 標準
平均無故障運行時間 (MTBF) > 700,000 小時，Telcordia SR-332標準
交流正常、直流正常及低電池信號監控
過壓 / 過流 / 過溫 / 短路保護
緩衝（放電）模式下內置式過流及短路保
通過 IEC/EN/UL 62368-1 認證

** NRND **

PMU-27V155WLBA, PMU-27V155WLCA

輸出電壓

27.6V

輸出功率

151W

輸出電流

4A,1.5A

輸入電壓範圍

90-132Vac, 180-264Vac (Selectable by Switch)

尺寸

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

重量

0.60 kg (1.32 lb)

應用領域

Optional Models

型號	Description
PMU-27V155WCBA	Enclosed, without Signal
PMU-27V155WLCA
PMU-27V155WLBA

資源下載

Datasheet

Uploaded on 21-Apr-2025

Manual

Uploaded on 26-Aug-2021


Uploaded on 30-Mar-2025

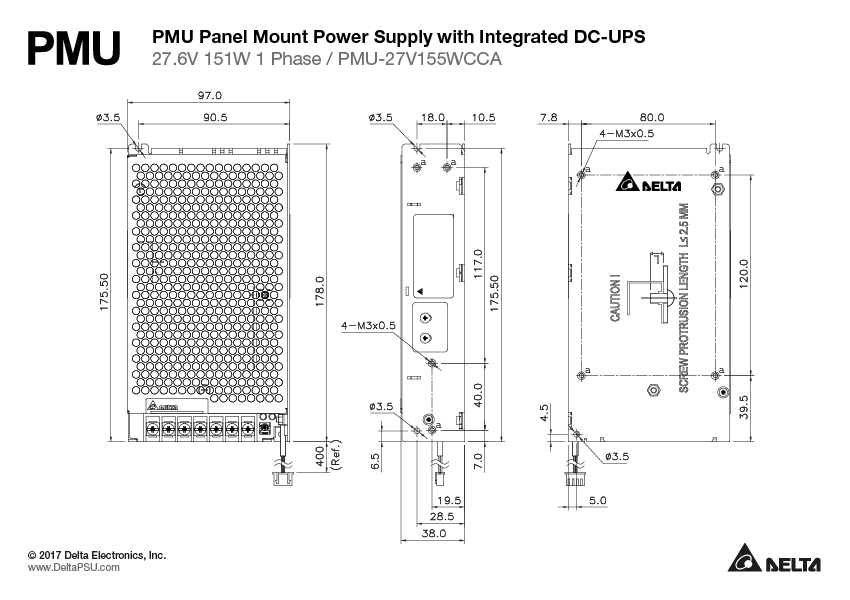

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

BIS

Uploaded on 17-May-2024

Uploaded on 07-Dec-2020

CCC

Uploaded on 17-Feb-2022

Uploaded on 07-Dec-2020

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 07-Dec-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 03-Nov-2021

Uploaded on 07-Dec-2020

GUI Software

Tech Specs

輸出電流

4A,1.5A

輸出電壓

27.6V

輸出電壓調整範圍

24-28Vdc

輸出功率

151W

線電壓調整率

< 0.5% (90-132Vac @ 90% load,180-264Vac @ 100% load)

負載調整率

< 1.0% (90-132Vac @ 0-90% load,180-264Vac @ 0-100% load)

紋波電壓

< 150mVpp @ 0°C to -20°C
< 100mVpp @ > 0°C to 70°C

開機時間

< 1,000ms (115Vac @ 90% load, 230Vac @ 100% load)

保持時間

> 20ms (115Vac @ 90% load, 230Vac @ 100% load)

動態回應

± 5%, 0-50% & 50-100% & 10-100% load
(Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 1KHz)

電容性負載啟動

3,600μF at 27.6V/5.5A

輸入輸出間電壓驟降

Normal Mode: 0.5V typ.
Buffering Mode: 0.2V typ.

升壓時間

< 50ms (100Vac @ 90% load, 200Vac @ 100% load)

額定輸入電壓

100-120Vac, 200-240Vac (Selectable by Switch)

輸入電壓範圍

90-132Vac, 180-264Vac (Selectable by Switch)

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

輸入電流

< 2.5A @ 115Vac, < 1.5A @ 230Vac

100% 負載效率

> 85.0% @ 115Vac
> 86.0% @ 230Vac

浪湧電流

(Cold Start)
< 25A @ 115Vac & 230Vac

漏電流

< 0.5mA @ 264Vac

功率損耗

No Load: < 0.4W @ 115Vac, < 0.5W @ 230Vac
100% Load: < 23W @ 115Vac & 230Vac

底架 / 外殼 AL / SGCC
指示燈 LED Indicator: Green LED: DC OK Red LED: Battery Connected in Reverse Polarity
冷卻方式 Convection
輸入端 -
輸出端 -
信號端 -
聲壓級（SPL） -
輸入/輸出端 -
信號 -
安裝導軌 -
電線 -
保護結構 -
端子台 -
重量 0.60 kg (1.32 lb)	尺寸 178 x 97 x 38 mm 7.01” x 3.82” x 1.50”

運行溫度

-20°C to +70°C

儲存溫度

-40°C to +85°C

功率降額

I/P: 90-132Vac:
< 0°C to -20°C de-rate power by 2.25% / °C
50°C to 70°C de-rate power by 2.25% / °C
I/P: 180-264Vac:
< 0°C to -20°C de-rate power by 2.5% / °C
50°C to 70°C de-rate power by 2.5% / °C

運行濕度

5 to 95% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,3 times per direction, 9 times in total

振動測試（非運行狀態）

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); displacement of 0.35mm; 20 min per axis for all X, Y, Z direction

運行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

碰撞試驗（運行狀態）

IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms,1000 times per direction, 3000 times in total

過壓類別

過壓保護

V1: <37.0V, SELV Output, Hiccup mode, Non-latching (auto-recovery)
B+: 30Vdc Max will not cause damage to the unit

超負載/過電保護

Normal Mode: 105-150% of rated load current, Hiccup mode, Non-Latching (Auto recovery)
Buffering Mode: 6.05-11.0A, Latch mode

過溫保護

Latch mode

短路保護

Normal Mode: Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)
Buffering Mode: Latch mode

電擊防護等級

Class I with Primary Earth connection

電池極性保護

Yes (RED LED = ON)

電池電壓保護錯誤

Yes, 30Vdc Max will not cause damage to the unit

深度放電保護

18.0V ± 0.5V

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, Ta: 25°C
O/P: 13.8V/9.9A for 13V model and 27.6V/4.95A for 27V model

預計最長使用壽命

10 years (115Vac & 230Vac, 50% load @ 40°C)

電氣安全

SIQ Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1, UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 60950-1, IEC 62368-1
CCC: GB/T 9254, GB 17625.1 and GB 4943.1
BIS: IS 13252 (Part 1)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac

安全特低電壓

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

BIS

IEC 60950-1, IS 13252 (Part 1)

輻射與傳導

Generic Standards: CISPR 22, CISPR 32, EN/BS EN 55022, EN/BS EN 55032, FCC Title 47: Class B

抗擾度

Generic Standards: EN/BS EN 55024

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A, GB17625.1

電壓波動和閃變

IEC/EN/BS EN 61000-3-3

額定電池電壓

(Batteries not included with power supply)
24Vdc
SLA Sealed lead acid battery
2 x 12Vdc
SLA Sealed lead acid battery

電池電壓範圍

Continuously Operating: 22.0 to 27.6Vdc (nominal at 24V)
Maximum Allowed Voltage: 32Vdc Max
Minimum Voltage: 16.5Vdc

電池容量

3.3AH/ 7AH/ 12AH/ 15AH

電池充電模式

(Normal Mode)
CC-CV mode (constant current-constant voltage) at 0 to 1.5A

充電電壓結束

The unit always charges battery to a fixed voltage value

(/3) Item(s) selected
