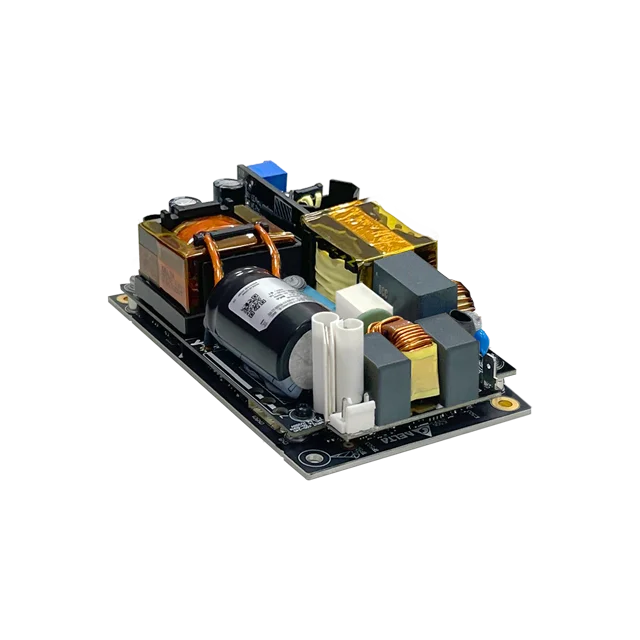

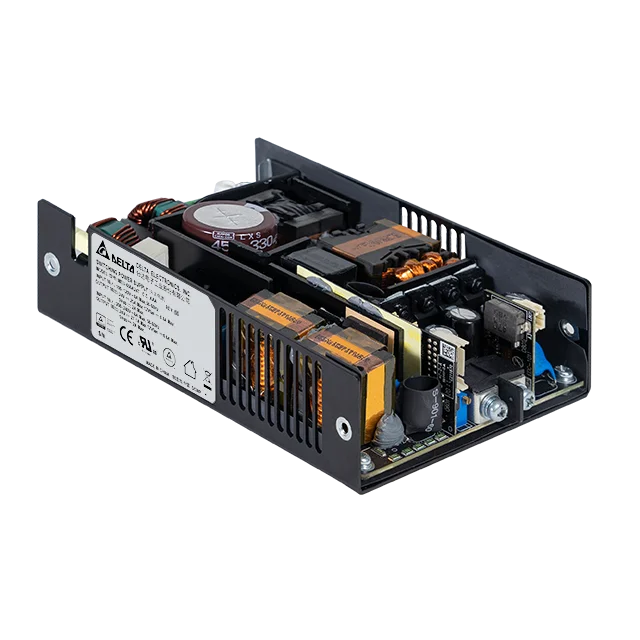

MEP-600A24J BRA

开架型电源

MEP Open Frame 系列

MEP-600A24J BRA

输出电压

24V

输出功率

600W

输出电流

0-25A

输入电压范围

90-264 Vac

尺寸 (L x W x H)

127.0 x 76.2 x 39.0 mm

5.00” x 3.00” x 1.54”

重量

0.435 kg (0.96 lb)

亮点与特色

GaN based technology
3" x 5" x 1.5" package with base
Up to 26.67 W/inch³ power density
Up to 600 W output with fan cooling
Up to 450 W output with natural convection cooling
5V / 2A standby output
Built-in remote on off & current sharing function
Remote sense voltage compensation
Digital voltage trimming
Up to 80 °C operating temperature
Up to 500KHrs MTBF
2 x MOPP isolation
Suited for Type BF medical products
Class B conducted and radiated EMI
Medical, IT and household appliances safety approvals

应用领域

开架型电源

MEP Open Frame 系列

MEP-600A24J BRA

亮点与特色

GaN based technology
3" x 5" x 1.5" package with base
Up to 26.67 W/inch³ power density
Up to 600 W output with fan cooling
Up to 450 W output with natural convection cooling
5V / 2A standby output
Built-in remote on off & current sharing function
Remote sense voltage compensation
Digital voltage trimming
Up to 80 °C operating temperature
Up to 500KHrs MTBF
2 x MOPP isolation
Suited for Type BF medical products
Class B conducted and radiated EMI
Medical, IT and household appliances safety approvals

输出电压

24V

输出功率

600W

输出电流

0-25A

输入电压范围

90-264 Vac

尺寸

127.0 x 76.2 x 39.0 mm

5.00” x 3.00” x 1.54”

重量

0.435 kg (0.96 lb)

应用领域

资源下载

Datasheet

Uploaded on 23-Dec-2024


Uploaded on 28-Feb-2025

Mechanical Drawing

Uploaded on 23-Dec-2024

.DXF

Uploaded on 23-Dec-2024

.STP

Uploaded on 23-Dec-2024

认证

Uploaded on 16-Dec-2024

CE & UKCA

Uploaded on 16-Dec-2024

cTUVus

Uploaded on 16-Dec-2024

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TUV

Uploaded on 16-Dec-2024

GUI Software

Tech Specs

输出电流

0-25A

输出电压

24V

输出电压调整范围

24-28 Vdc

输出功率

600W

线电压调整率

0.5%

负载调整率

纹波电压

240 mVpp typ. (100% load)

开机时间

900 ms typ. @ 90 Vac & 264 Vac

保持时间

19 ms typ. @ 115 Vac & 230 Vac (100% load)

动态回应

± 5% @ with 5-100% load change,
(50% duty @ 10 Hz & 10 KHz, 0.5 A/us slew rate)

电容性负载启动

6,000 μF Max

升压时间

11 ms typ. @ 90 Vac & 264Vac

额定输入电压

100-240 Vac

输入电压范围

90-264 Vac

额定输入频率

50-60 Hz

输入频率范围

47-63Hz

输入电流

5.8 A typ. @ 115 Vac, 2.9 A typ. @ 230 Vac

100% 负载效率

93.6% type @ 115 Vac
95.3% typ. @ 230 Vac

涌入电流

40 A typ. @ 264 Vac (Cold Start)

功率因数

> 0.95 @ 115 Vac
> 0.93 @ 230 Vac

漏电流

0.3 mA @ NC,
1.0 mA @ SFC

功率损耗

No load: 1.1 W typ. @ 264 Vac

底座 / 外壳上盖 Open Frame
指示灯 -
冷却方式 Convection / Force air
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 Input: JST: B2P3-VH(LF)(SN) or equivalent Output: M4 x 0.7 Control: JST: S8B-PHDSS(LF)(SN) or equivalent
重量 0.435 kg (0.96 lb)	尺寸 127.0 x 76.2 x 39.0 mm 5.00” x 3.00” x 1.54”

运行温度

-20 °C to +80 °C

储存温度

-40 °C to +85 °C

功率降级

Temperature Power De-rating: > 50°C de-rate power by 1.67% / °C
Line Power De-rating: < 100Vac de-rate power by 0.83% / Vac

运行湿度

5-95 % RH (Non-Condensing)

防震测试（非运行状态）

50 G, 11 ms, 3 shocks for each direction

振动测试（非运行状态）

5-500 Hz, 2.09 Grms, 20 minutes for each three axis

运行高度

Up to 5,000 meters (up to 16,400 feet or 106-54kPa)

污染程度

过压类别

过压保护

Main output 110-150% of rated normal voltage, Latch mode

超负载/过电保护

Main output 105-130% of rated current, Hiccup Mode

过热保护

Latch Mode

短路保护

Hiccup Mode (Non-Latching, Auto-Recovery)

防震保护

Class I

MTBF

500K hrs based on Telecordia SR-332

电气安全

IEC62368-1 CB report
TUV EN 62368-1
UL 62368-1 and CAN/CSA C22.2 No. 62368-1
IEC60335-1 CB report
IEC61558-1 /-2-16 CB report

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015

医疗安全

IEC60601-1 CB report
TUV EN60601-1
ANSI/AAMI ES 60601-1+CAN/CSA-C22.2 No.60601-1

电隔离

Input to/Output (2XMOPP): 4000 Vac
Input to/Ground (1XMOPP): 1768 Vac
Output to/Ground (1XMOPP): 1768 Vac (Type BF application rated)

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Medical Devices Regulations 2002 (UK MDR 2002)

排放

EN55032 Class B, AS/NZS CISPR32 Class B

谐波电流排放

IEC 61000-3-2, Meet Class A limit

电压波动和闪变

IEC 61000-3-3

电压骤降

IEC 61000-4-11
IEC 60601-1-2

(/3) Item(s) selected
