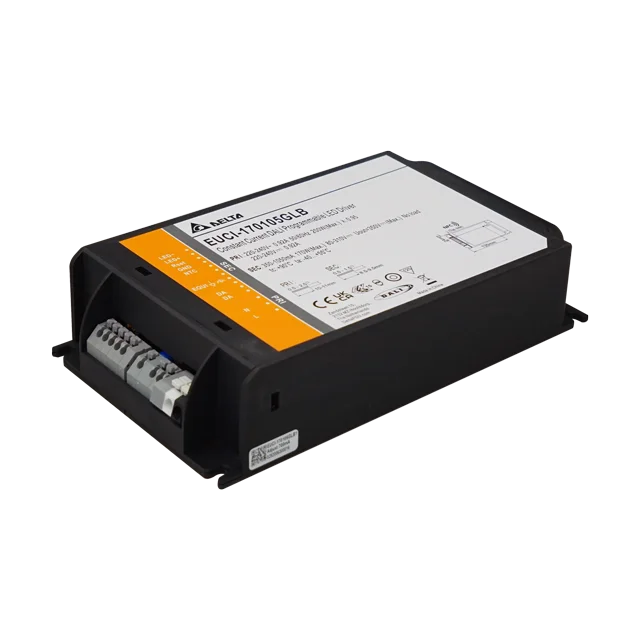

EUCI-170105GLB1

LED Driver

EUCI LITE Series

EUCI-170105GLB1

Output Voltage

80-310V

Output Power

170W

Output Current

0.2-1.05A

Input Voltage Range

198-264Vac

Dimensions (L x W x H)

170.0 x 100.0 x 40.0 mm

6.69” x 3.94” x 1.57”

Unit Weight

0.98 (0.00 lb)

Highlights & Features
  • DALI-2 certified LED driver, 5%-100 % dimming range
  • Flexible configurable operating windows (AOC) via NFC, DALI
  • Robustness protection against vibration, harsh operating temperature and moisture
  • Autonomous dimming includes three “Smart Timer Dim” operation modes with five independent levels
  • High Efficiency (Up to 90%)
  • High surge immunity
  • Design and fix for luminaires of protection class I and protection class II
Applications
EUCI-170105GLB1
EUCI-170105GLB1

LED Driver

EUCI LITE Series

EUCI-170105GLB1

Highlights & Features
  • DALI-2 certified LED driver, 5%-100 % dimming range
  • Flexible configurable operating windows (AOC) via NFC, DALI
  • Robustness protection against vibration, harsh operating temperature and moisture
  • Autonomous dimming includes three “Smart Timer Dim” operation modes with five independent levels
  • High Efficiency (Up to 90%)
  • High surge immunity
  • Design and fix for luminaires of protection class I and protection class II
Output Voltage

80-310V

Output Power

170W

Output Current

0.2-1.05A

Input Voltage Range

198-264Vac

Dimensions

170.0 x 100.0 x 40.0 mm

6.69” x 3.94” x 1.57”

Unit Weight

0.98 (0.00 lb)

Applications

Download

Download

Datasheet

Uploaded on 12-Jul-2023


Uploaded on 05-Jun-2024

.DXF

Uploaded on 12-Jul-2023

.STP

Uploaded on 12-Jul-2023

CB

Uploaded on 12-Jul-2023

CE & UKCA

Uploaded on 12-Jul-2023

ENEC

Uploaded on 12-Jul-2023

GUI Program

Uploaded on 08-Oct-2024

Tech Specs

Tech Specs

Output Current
0.2-1.05A
Output Voltage
80-310V
Output Voltage Range
80-310Vdc
Output Voltage Adjustment Range
-
Output Power
170W
Output Current Adjustment Range
Max Output Voltage
350Vdc
Buffering Time
-
Line Regulation
± 3% (@ 220-240Vac)
Load Regulation
± 5% (@ Min-Max output voltage)
PARD
-
Start-up Time
520~1000ms max. (@ 220-240Vac)
Hold-up Time
-
Dynamic Response (Overshoot & Undershoot O/P Voltage)
-
Start-up with Capacitive Loads
-
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
-
Power Boost Duration
-
Power Boost Recovery Time
-
Nominal Input Voltage
220-240Vac
Input Voltage Range
198-264Vac
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
0.8A @ 230Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
93% @ 0.7A, 230Vac
92% @ 1.05A, 230Vac
Inrush Current
10A/250uS @ 230Vac
Charging Time
-
Power Factor at 100% load
> 0.95 @ 230Vac, 100% load
Leakage Current
< 0.7mA peak @ 230Vac
Nominal Current
-
Total Harmonic Distortion
< 20% @ 230Vac, 100% load
Power Dissipation
-
Efficiency @ 10% load
-
Case Chassis / Cover
Plastic, Color : Black
Indicator
-
Cooling System
Convection
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
< 24dBA
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
-
Protection Structure
-
Terminal
-
Unit Weight
0.98 (0.00 lb)
Dimensions
170.0 x 100.0 x 40.0 mm
6.69” x 3.94” x 1.57”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
-40°C to +55°C
Storage Temperature
-40°C to +85°C
Power De-rating
-
Operating Humidity
10 to 90% RH (Non-Condensing)
Shock Test (Non-Operating)
-
Vibration (Non-Operating)
-
Storage Humidity
5 to 95% RH (Non-Condensing)
Operating Altitude
-
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Overvoltage
360Vrms, Luminaries will work normally when the fault is removed
Overload / Overcurrent
Reduce output current. Auto-Recovery when the fault is removed
Over Temperature
Reduce output current. Auto-Recovery when the fault is removed
Short Circuit
Auto-Recovery when the fault is removed
Reverse Polarity Protection
-
Degree of Protection
IP20
Protection Against Shock
-
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
50,000 hours @ lifetime case temperature
Expected Cap Life Time
475,000 hours @Ta=+55°C (as per Telcordia SR-332, total failure rate less than10%)
Safety Certificate
IEC 61347-1, IEC 61347-2-13 (Built in)
EN 61347-1, EN 61347-2-13
Electrical Safety
IEC 61347-1, IEC 61347-2-13 (Built in)
EN 61347-1, EN 61347-2-13
CE
In conformance with EMC Directive and Low Voltage Directive
Medical Safety
-
Galvanic Isolation
-
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
RoHS Directive 2011/65/EU Compliant
Isolation Resistance
-
PE Resistance
-
UKCA
-
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
(CE & RE)
Compliance to EN 55015 Class B
Immunity
Compliance to EN 61547
Harmonic Current Emissions
Class C (230Vac @ ≥ 50% load)
Voltage Fluctuation and Flicker
-
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
