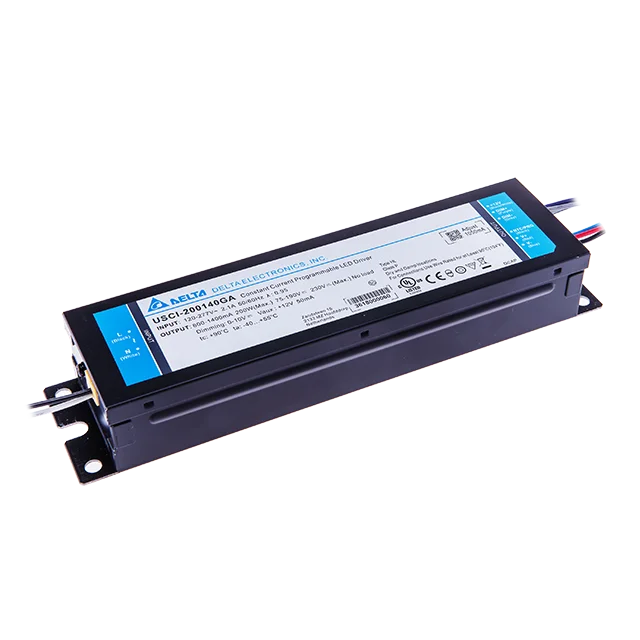

USCI-200140GA

LED Driver

USCI PRO Series

USCI-200140GA

Output Voltage

75-190V

Output Power

200W

Output Current

0.6-1.4A

Input Voltage Range

108-305Vac

Dimensions (L x W x H)

240.5 x 60.0 x 38 mm

9.47” x 2.36” x 1.50”

Unit Weight

1.1 kg (2.43 lb)

Highlights & Features

Constant current design
Universal AC input voltage from 108-305Vac
High efficiency up to 94%
Wide operating temperature range -40oC ~ +55oC
Built-in Active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class C
Adjustable constant current level through program tool
Common mode 6kV and differential mode 6kV surge immunity
Suitable for Dry / Damp location
5 years warranty
UL LISTED, Class P & Type HL

Applications

Download

Datasheet

Uploaded on 25-Mar-2022


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 22-Apr-2020

REACH

Uploaded on 22-Apr-2020

RoHS

Uploaded on 22-Apr-2020

GUI Software

GUI Program

Uploaded on 08-Oct-2024

Tech Specs

Output Current

0.6-1.4A

Output Voltage

75-190V

Output Power

200W

Line Regulation

± 1% (@ 120-277Vac input)

Load Regulation

± 3% (@ Min-Max output voltage)

Start-up Time

500ms max. @ 120-277Vac (full load)

Hold-up Time

16ms typ. @ 120-277Vac (full load)

Nominal Input Voltage

120-277Vac

Input Voltage Range

108-305Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-64Hz

Input Current

2.1A @ 120Vac

Efficiency at 100% load

120Vac: 93.0%@1.05A typ.
230Vac: 94.0%@1.05A typ.
277Vac: 94.0%@1.05A typ.

Power Factor at 100% load

PF>0.98@120Vac, PF>0.95@230Vac, PF>0.92@277Vac

Leakage Current

<0.7mA peak @ 277Vac

Total Harmonic Distortion

THD<20% with load≧50% at 120/230Vac input and load≧75% at 277Vac input

Case Chassis / Cover Steel case, color : Black
Indicator -
Cooling System -
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 24dbA (30cm distance)
Input/Output Terminal -
Signal -
Mounting Rail -
Wire Input: L: Black, N: White; UL1316 18AWG solid copper wires Length 300mm Output: Positive: Red, Negative: Blue; NTC/PRG: Black; wires Length 300mm Dimming: Dim(+): Violet, Dim(-): Gray, +12V: Black/White; wires Length 300mm
Protection Structure -
Terminal -
Unit Weight 1.1 kg (2.43 lb)	Dimensions 240.5 x 60.0 x 38 mm 9.47” x 2.36” x 1.50”

Operating Temperature

-40°C to +65°C

Storage Temperature

-40°C to +85°C

Power De-rating

> 55°C de-rating power & < 120Vac de-rating power
“OUTPUT LOAD VS INPUT VOLTAGE” & “OUTPUT LOAD VS AMBIENT TEMPERATURE”

Operating Humidity

10 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09G); 20 min per axis for all X, Y, Z direction

Overvoltage

191-230Vdc, Auto-Recovery when the fault is removed

Overload / Overcurrent

Reduce output current. Auto-Recovery when the fault is removed

Over Temperature

Reduce output current. Auto-Recovery when the fault is removed

Short Circuit

Auto-Recovery when the fault is removed

MTBF

500 khours at +45°C ambient temperature, Telcordia SR-332.

Safety Certificate

CB scheme to IEC 61347-1, IEC 61347-2-13 (Built-in)
EN 61347-1, EN 61347-2-13
UL/cUL (cRUus) to UL 8750
Compliance to IEC/EN/UL 60950-1

In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC

Emission

Compliance to EN 55015:2013 Class B; 47 CFR FCC Part 15, Subpart B, Class B

Immunity

Compliance to EN 61547:2009

Harmonic Current Emissions

IEC 61000-3-2:2014

Voltage Fluctuation and Flicker

IEC 61000-3-3:2013
