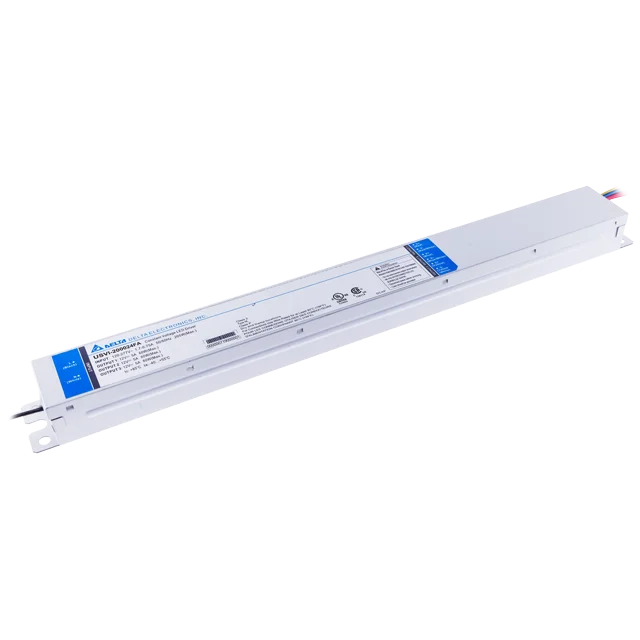

USVI-200024FA

LED Driver

USVI S24 Series

USVI-200024FA

Output Voltage

24V

Output Power

192W

Output Current

4A

Input Voltage Range

108-305Vac

Dimensions (L x W x H)

424.2 x 43.1 x 30 mm

16.70” x 1.70” x 1.18”

Unit Weight

0.49 kg (1.08 lb)

Highlights & Features
  • Constant voltage design
  • Universal input voltage 120-277Vac
  • Multi-Channel output and independent operating
  • Class 2 output
  • Wide operating temperature range -40°C to +55°C
  • Dry and Damp location rated for signage application
Applications


USVI-200024FA
USVI-200024FA

LED Driver

USVI S24 Series

USVI-200024FA

Highlights & Features
  • Constant voltage design
  • Universal input voltage 120-277Vac
  • Multi-Channel output and independent operating
  • Class 2 output
  • Wide operating temperature range -40°C to +55°C
  • Dry and Damp location rated for signage application
Output Voltage

24V

Output Power

192W

Output Current

4A

Input Voltage Range

108-305Vac

Dimensions

424.2 x 43.1 x 30 mm

16.70” x 1.70” x 1.18”

Unit Weight

0.49 kg (1.08 lb)

Applications

Download

Download

Datasheet

Uploaded on 08-Aug-2022


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

CSA

Uploaded on 24-Apr-2020

UL

Uploaded on 24-Apr-2020

Tech Specs

Tech Specs

Output Current
4A
Output Voltage
24V
Output Voltage Range
Output Voltage Adjustment Range
-
Output Power
192W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
± 1%
Load Regulation
± 3%
PARD
-
Start-up Time
< 1s
Hold-up Time
-
Dynamic Response (Overshoot & Undershoot O/P Voltage)
-
Start-up with Capacitive Loads
-
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
< 50ms
Power Boost Duration
-
Power Boost Recovery Time
-
Nominal Input Voltage
120-277Vac
Input Voltage Range
108-305Vac
Max Input Voltage
-
Nominal Input Frequency
50/60 Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
1.83A
Input Power (Standby Mode)
-
Efficiency at 100% load
90.5% typ. @277Vac
Inrush Current
-
Charging Time
-
Power Factor at 100% load
> 0.95 @ max. load.
Leakage Current
< 0.7mA@ 277Vac
Nominal Current
-
Total Harmonic Distortion
< 20% @ max. load
Power Dissipation
-
Efficiency @ 10% load
-
Case Chassis / Cover
Metal sheet
Indicator
-
Cooling System
Convection
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
24dBA (30cm distance)
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
Line: Black, Neutral: White, Wire Length 12.50inch (317mm)
Protection Structure
-
Terminal
-
Unit Weight
0.49 kg (1.08 lb)
Dimensions
424.2 x 43.1 x 30 mm
16.70” x 1.70” x 1.18”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
-40°C to + 55°C
Storage Temperature
-40°C to +85°C
Power De-rating
-
Operating Humidity
10 to 90% RH (Non-Condensing)
Shock Test (Non-Operating)
-
Vibration (Non-Operating)
-
Storage Humidity
5 to 95% RH (Non-Condensing)
Operating Altitude
-
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Overvoltage
Auto-Recovery when the fault is removed
Overload / Overcurrent
Auto-Recovery when the fault is removed
Over Temperature
Auto-Recovery when the fault is removed
Short Circuit
Auto-Recovery when the fault is removed
Reverse Polarity Protection
-
Degree of Protection
-
Protection Against Shock
-
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
500,000 hrs. @ 40°C ambient temperature (as per Telcordia SR-332 , survival rate more than 90%)
Expected Cap Life Time
50,000 hrs. at lifetime case temperature
Safety Certificate
-
Electrical Safety
UL: UL 8750, Class P, type “HL”. Class 2 Output
CSA: CAN/CSA C22.2 No.250.13
CE
-
Medical Safety
-
Galvanic Isolation
See datasheet
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
RoHS Directive Compliant
Isolation Resistance
-
PE Resistance
-
UKCA
-
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
Compliance to 47 CFR FCC Part 15, Subpart B, Class B
Immunity
-
Harmonic Current Emissions
-
Voltage Fluctuation and Flicker
-
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
ANSI C62.41 Category A1 with a 2.5kV/100kA ring wave
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
