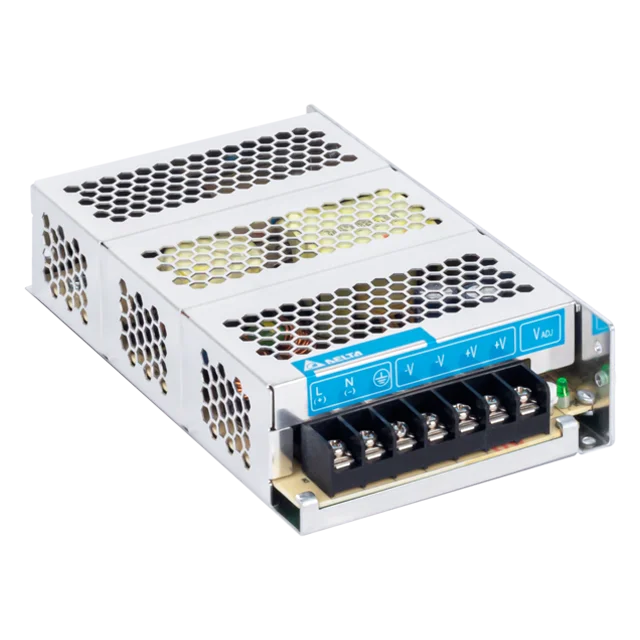

PMC-24V150W1AA

Panel Mount

PMC Series

PMC-24V150W1AA

Output Voltage

24V

Output Power

150W

Output Current

6.25A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

Unit Weight

0.48 kg (1.06 lb)

Highlights & Features

Universal AC input range from 85Vac to 264Vac without power de-rating
Full Aluminum casing for light weight and corrosion resistant handling
High MTBF > 700,000 hrs as per Telcordia SR-332
Overvoltage / Overcurrent / Over Temperature Protections
Certified according to IEC/EN/UL 62368-1
IP20 Compliant (for PMC-24V150W1AJ)

** Discontinued Product **

Replaced by: PMT-24V150W2CA / PMT-24V150WCAC

Optional Models

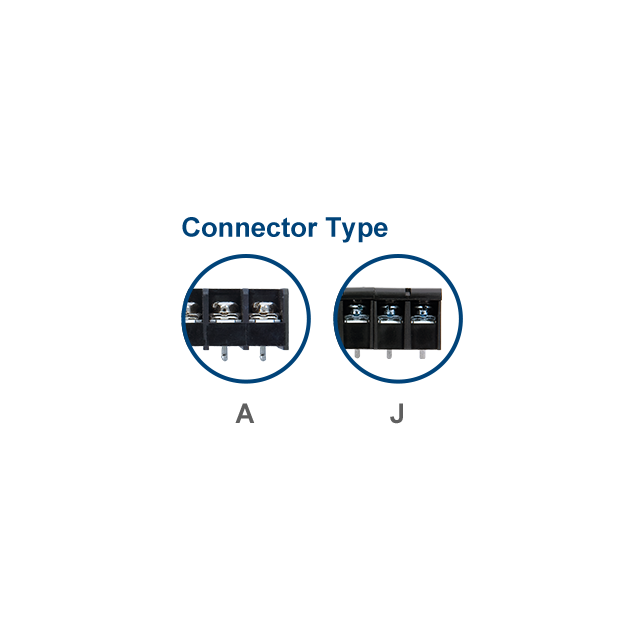

Model	Description
PMC-24V150W1AJ	IP20 connector

Applications

Panel Mount

PMC Series

PMC-24V150W1AA

Highlights & Features

Universal AC input range from 85Vac to 264Vac without power de-rating
Full Aluminum casing for light weight and corrosion resistant handling
High MTBF > 700,000 hrs as per Telcordia SR-332
Overvoltage / Overcurrent / Over Temperature Protections
Certified according to IEC/EN/UL 62368-1
IP20 Compliant (for PMC-24V150W1AJ)

** Discontinued Product **

Replaced by: PMT-24V150W2CA / PMT-24V150WCAC

Output Voltage

24V

Output Power

150W

Output Current

6.25A

Input Voltage Range

85-264Vac

Dimensions

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

Unit Weight

0.48 kg (1.06 lb)

Applications

Optional Models

Model	Description
PMC-24V150W1AJ	IP20 connector

Download

Datasheet

Uploaded on 22-Sep-2021

Manual

Uploaded on 16-Nov-2020


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 18-Dec-2020

.DXF

Uploaded on 18-Dec-2020

.STP

Uploaded on 18-Dec-2020

Certificates

Uploaded on 16-Nov-2020

Uploaded on 17-Nov-2020

EAC

Uploaded on 22-Apr-2020

Uploaded on 22-Sep-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 16-Nov-2020

UKCA

Uploaded on 22-Sep-2021

Uploaded on 16-Nov-2020

GUI Software

Tech Specs

Output Current

6.25A

Output Voltage

24V

Output Voltage Adjustment Range

22-28Vdc

Output Power

150W

Line Regulation

< 0.5% typ. (@ 85-264 Vac input, 100% load)

Load Regulation

< 1% typ. (@ 85-264 Vac input, 0-100% load)

PARD

< 100 mVpp

Start-up Time

< 1000 ms @ nominal input (100% load)

Hold-up Time

> 15 ms @ 115 Vac,
> 80 ms @ 230 Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 85-264 Vac input, 0-100% load
(Slew Rate: 0.1 A/μs, 50% duty cycle @ 5 Hz to 1 KHz)

Start-up with Capacitive Loads

8,000µF Max

Rise Time

< 30 ms @ nominal input (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Nominal DC Input Voltage

125-250Vdc

DC Input Voltage Range

125-375Vdc

Input Current

< 3.1A @115Vac,
< 2.0A @230Vac

Efficiency at 100% load

> 87% @ 115Vac,
> 88% @ 230Vac

Inrush Current

< 60A @ 115Vac,
< 120A @ 230Vac

Leakage Current

< 1mA @ 240Vac

Case Chassis / Cover Aluminium
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) <40dBA
Input/Output Terminal PMC-24V150W1AA: M3.5 x 7 Pins (Rated 300V/15A) PMC-24V150W1AJ: M3.5 x 7 Pins (Rated 300V/20A)
Signal -
Mounting Rail -
Wire PMC-24V150W1AA: AWG 18-14 PMC-24V150W1AJ: AWG 18-12
Protection Structure -
Terminal -
Unit Weight 0.48 kg (1.06 lb)	Dimensions 178 x 97 x 38 mm 7.01” x 3.82” x 1.50”

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Power De-rating

> 50°C de-rate power by 2.5% /°C

Operating Humidity

< 95% RH

Shock Test (Non-Operating)

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms 3 times per direction, 18 times in total

Vibration (Non-Operating)

IEC60068-2-6, 10Hz to 500Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

Operating Altitude

3,000 Meters

Pollution Degree

Overvoltage

< 32V ±10%, SELV output, Hicc-up Mode, Non-Latching (Auto recovery).

Overload / Overcurrent

> 120% of rated load current, Hicc-up Mode, Non-Latching (Auto recovery).

Over Temperature

< 75°C Ambient Temp@ 100% load, Non-Latching (Auto-recovery).

Short Circuit

Hicc-up Mode, Non-Latching (Auto-recovery when the fault is removed).

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. per Telcordia SR-332

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart : EN 62368-1
UL/cUL recognized : UL 60950-1 and CSA C22.2 No. 60950-1, UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme :IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 500 Vac

Safety Entry Low Voltage

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

K 60950-1

Emission

Generic Standards: CISPR32, EN/BS EN 55032,
FCC Title 47: Class B

Immunity

Generic Standards: EN/BS EN 55024

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
