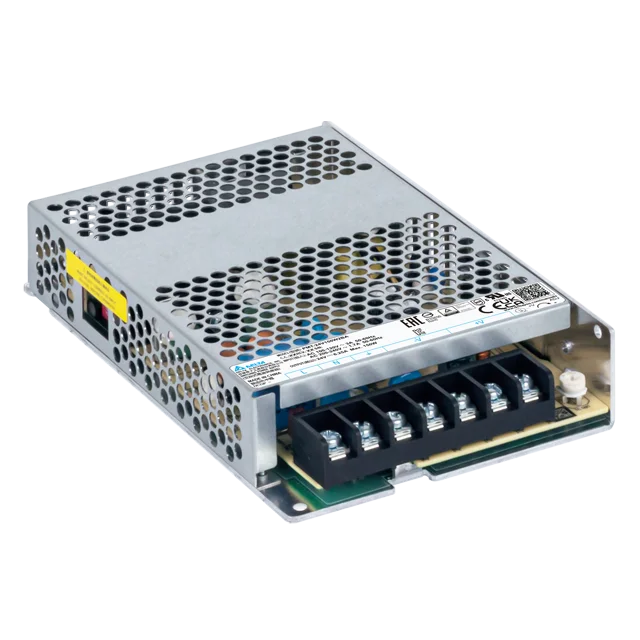

Delta PMR-12V150W1AT 12V 150W 12.5A Panel Mount PMR Series

Download

Datasheet

Uploaded on 04-Jun-2024

Manual

Uploaded on 05-Apr-2024


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 13-Feb-2024

.DXF

Uploaded on 13-Feb-2024

.STP

Uploaded on 13-Feb-2024

Certificates

BSMI

Uploaded on 13-Feb-2024

CCC

Uploaded on 13-Feb-2024

EAC

Uploaded on 13-Feb-2024

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TUV

Uploaded on 13-Feb-2024

UKCA

Uploaded on 13-Feb-2024

GUI Software

Tech Specs

Output Current

12.5A

Output Voltage

12V

Output Voltage Adjustment Range

10.8-13.2 Vdc

Output Power

150W

Line Regulation

± 0.5% typ. @ 115 Vac & 230 Vac

Load Regulation

±0.5% typ.

PARD

< 120 mVpp @ 0°C to 70°C
360 mVpp typ. @ -30°C to 0°C

Start-up Time

500 ms typ. @ 115 Vac & 230 Vac

Hold-up Time

30 ms typ. @ 115 Vac & 230 Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 10% @ 115 & 230 Vac input, 10-100% load
(Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 KHz)

Start-up with Capacitive Loads

8,000 µF Max

Max. Power

150.0 W

Rise Time

30 ms typ. @ 115 Vac & 230 Vac

Nominal Input Voltage

100-240 Vac

Input Voltage Range

90-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

DC Input Voltage Range

127-375 Vdc

Input Current

1.5 A typ. @ 115 Vac
0.8 A typ. @ 230 Vac

Input Power (Standby Mode)

0.3 W max. @ 230 Vac

Efficiency at 100% load

93% typ. @ 230 Vac

Inrush Current

45 A typ. @ 230 Vac

Power Factor at 100% load

> 0.96 @ 115 Vac
> 0.93 @ 230 Vac

Leakage Current

< 0.5 mA @ 240 Vac

Case Chassis / Cover Aluminum / SGCC
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 18-12
Protection Structure -
Terminal M3.5 x 7 Pins (Rated 300 V / 20 A)
Unit Weight 0.35 kg (0.77 lb)	Dimensions 129 x 97 x 30 mm 5.08” x 3.82” x 1.18”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz @ 2G;10Min per cycle,60min for X,Y,Z direction

Operating Temperature

-30°C to +70°C ( -40°C Cold Start )

Storage Temperature

-40°C to +85°C

Power De-rating

> 50°C de-rate power by 2% / °C
< 100Vac de-rate power by 1% / V (90% load @ 90 Vac)

Operating Humidity

20 to 90% (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction

Operating Altitude

0 to 5,000 Meters (0 to 16,400 ft)

Pollution Degree

Over Voltage Category

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Overvoltage

13.2 V - 16.8 V
SELV Output
Latch Mode

Overload / Overcurrent

110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching
(Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Protection Earth connection

MTBF

> 700,000 hrs as per Telcordia SR-332
(I/P: 230 Vac, O/P: 100% Load, Ta: 25°C)

Expected Cap Life Time

10 years (230 Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 62368-1, EN 60335-1
UL/cUL: UL 62368-1, and CAN/CSA C22.2 No. 62368-1
CB scheme: IEC 62368-1, IEC 60335-1, IEC/EN 61558-1/-2-16
EAC: TP TC 004/2011
BSMI: CNS 15598-1
CCC: GB 4943.1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 4.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 1.25 KVac

Safety Entry Low Voltage

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

(CE & RE)
CISPR 32, EN/BS EN 55032, KS C 9832, AS/NZS CISPR32 & Compliance to FCC Title 47, EN/BS EN 55014-1 , EN/BS 61000-6-3 , EN/BS EN 61000-6-4 : Class B

Immunity

EN/BS EN 55035, KS C 9835, & Compliance to EN/ BS EN 55014-2 , EN/BS EN 61000-6- 1 , EN/BS EN 61000-6-2

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A & Class D

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
