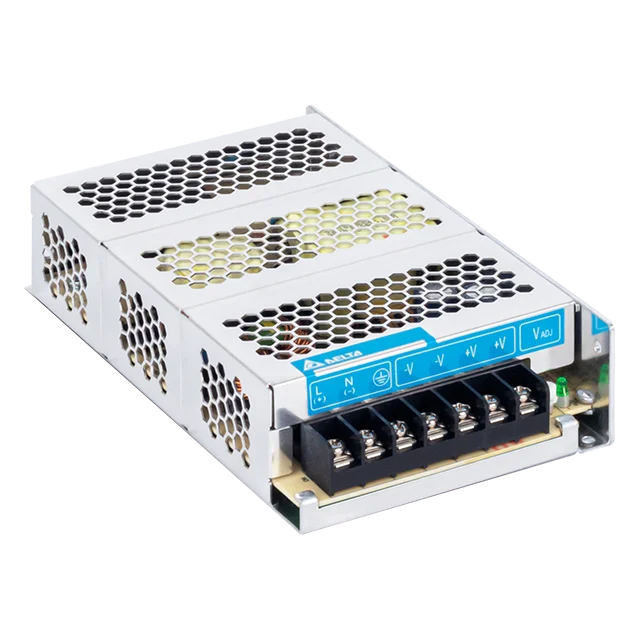

PMC-24V150W1BA

Panel Mount

PMC Series

PMC-24V150W1BA

Output Voltage

24V

Output Power

150W

Output Current

6.25A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

Unit Weight

0.54 kg (1.19 lb)

Highlights & Features

Universal AC input voltage range
Power will not de-rate for the entire input voltage range
Full corrosion resistant aluminium casing
High MTBF > 700,000 hrs per Telcordia SR-332
Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55032, Class B
Also available: IP20 and Front Face connectors

** NRND **

PMC-24V150W1BA, PMC-24V150W1BJ, PMC-24V150W1BL

Recommended Model: PMR-24V150W1AT

Optional Models

Model	Description
PMC-24V150W1BJ	IP20 connector
PMC-24V150W1BL	Front face connector

Applications

Panel Mount

PMC Series

PMC-24V150W1BA

Highlights & Features

Universal AC input voltage range
Power will not de-rate for the entire input voltage range
Full corrosion resistant aluminium casing
High MTBF > 700,000 hrs per Telcordia SR-332
Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55032, Class B
Also available: IP20 and Front Face connectors

** NRND **

PMC-24V150W1BA, PMC-24V150W1BJ, PMC-24V150W1BL

Recommended Model: PMR-24V150W1AT

Output Voltage

24V

Output Power

150W

Output Current

6.25A

Input Voltage Range

85-264Vac

Dimensions

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

Unit Weight

0.54 kg (1.19 lb)

Applications

Optional Models

Model	Description
PMC-24V150W1BJ	IP20 connector
PMC-24V150W1BL	Front face connector

Download

Datasheet

Uploaded on 27-Jan-2022

Manual

Uploaded on 06-Nov-2020


Uploaded on 18-Jul-2025

Mechanical Drawing

Uploaded on 06-Nov-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 06-Nov-2020

CCC

Uploaded on 30-Nov-2022

Uploaded on 06-Nov-2020

EAC

Uploaded on 22-Apr-2020

Uploaded on 19-Oct-2021

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 06-Nov-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 19-Oct-2021

Uploaded on 06-Nov-2020

GUI Software

Tech Specs

Output Current

6.25A

Output Voltage

24V

Output Voltage Adjustment Range

22-28Vdc

Output Power

150W

Line Regulation

< 0.5% (@ 85-264Vac input, 100% load)

Load Regulation

< 1% (@ 85-264Vac input, 0-100% load)

PARD

< 100mVpp

Start-up Time

< 3000ms @ nominal input (100% load)

Hold-up Time

> 30ms @ 115Vac & 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 85-264Vac input, 0-100% load
(Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz)

Start-up with Capacitive Loads

8,000μF Max

Rise Time

< 30ms @ nominal input (100% load)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Nominal DC Input Voltage

125-250Vdc

DC Input Voltage Range

125-375Vdc

Input Current

< 1.70A @ 115Vac,
< 1.00A @ 230Vac

Efficiency at 100% load

> 89% @ 115Vac, > 91% @ 230Vac

Inrush Current

< 60A @ 115Vac,
< 120A @ 230Vac

Power Factor at 100% load

> 0.99 @ 115Vac, > 0.90 @ 230Vac

Leakage Current

< 1mA @ 240Vac

Power Dissipation

< 0.85W @ 115Vac, < 0.75W @ 230Vac @0% load
< 18.5W @ 115Vac, < 14.8W @ 230Vac @100% load

Case Chassis / Cover Aluminium
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 40dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.54 kg (1.19 lb)	Dimensions 178 x 97 x 38 mm 7.01” x 3.82” x 1.50”

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Power De-rating

> 50°C de-rate power by 2.5% /°C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 3 times per direction, 18 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 90 min per axis for all X, Y, Z direction

Operating Altitude

5,000 Meters (16,400 ft.)

Pollution Degree

Bump Test (Operating)

IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms, 1000 times per direction, 6000 times in total direction

Over Voltage Category

Overvoltage

< 32V ±10%, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)

Overload / Overcurrent

> 120% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

< 75°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-recovery).

Short Circuit

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed).

Degree of Protection

IP20 (PMC-24V150W1AJ)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

SIQ Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1
CCC: GB9254, GB17625.1 and GB4943.1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac

Safety Entry Low Voltage

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

K60950-1

Emission

Generic Standards: CISPR 32, EN/BS EN 55032,
KN 32 FCC Title 47: Class B, GB9254

Immunity

Generic Standard: EN/BS EN 55024, KN 35

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A; GB17625.1

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
