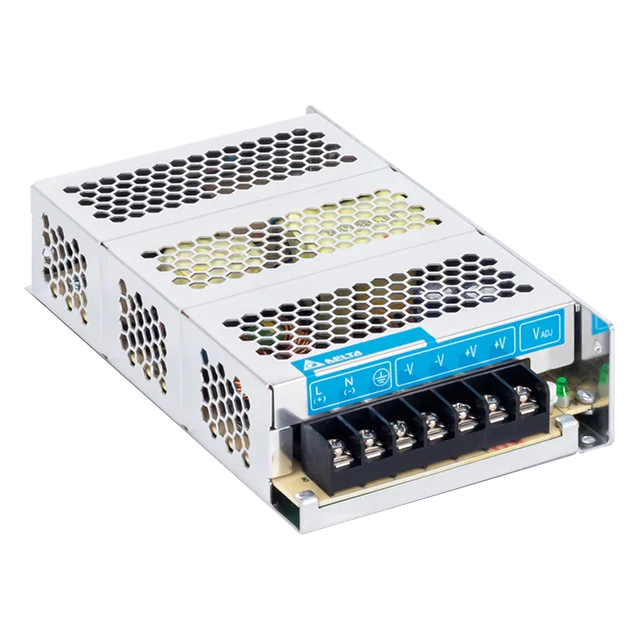

PMC-48V150W1BA

Panel Mount

PMC Series

PMC-48V150W1BA

Output Voltage

48V

Output Power

150W

Output Current

3.125A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

Unit Weight

0.53 kg (1.17 lb)

Highlights & Features

Universal AC input voltage range
Power will not de-rate for the entire input voltage range
Full corrosion resistant aluminium casing
Conforms to harmonic current IEC/EN 61000-3-2, Class A
High MTBF > 700,000 hrs per Telcordia SR-332
Safety approval according to IEC/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55032, Class B

** NRND **

Recommended Model: PMR-48V150W1AT

Applications

Download

Datasheet

Uploaded on 17-Aug-2021

Manual

Uploaded on 06-Nov-2020


Uploaded on 10-Oct-2024

Mechanical Drawing

Uploaded on 09-Nov-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 06-Nov-2020

CCC

Uploaded on 06-Nov-2020

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

SIQ

Uploaded on 06-Nov-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 17-Aug-2021

Uploaded on 06-Nov-2020

GUI Software

Tech Specs

Output Current

3.125A

Output Voltage

48V

Output Voltage Adjustment Range

44-53Vdc

Output Power

150W

Line Regulation

< 0.5% typ. (@ 85-264Vac, 100% load)

Load Regulation

< 1% typ. (@ 85-264Vac, 0-100% load)

PARD

< 200mVpp

Start-up Time

< 3,000ms @ nominal input (100% load)

Hold-up Time

> 30ms @ 115Vac & 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 85-264Vac input, 0-100% load
(Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz)

Start-up with Capacitive Loads

2,000μF Max @ 25°C (CC and CR mode)
1,000μF Max @ -10°C and 50°C (CC mode)
2,000μF Max @ -10°C and 50°C (CR mode)

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Nominal DC Input Voltage

125-250Vdc

DC Input Voltage Range

125-375Vdc

Input Current

< 1.70A @ 115Vac,
< 1.00A @ 230Vac

Efficiency at 100% load

> 89.0% @ 115Vac,
> 91.0% @ 230Vac

Inrush Current

< 20A @ 115Vac,
< 40A @ 230Vac

Power Factor at 100% load

> 0.99 @ 115Vac,
> 0.92 @ 230Vac

Leakage Current

< 1.5mA @ 240Vac

Case Chassis / Cover Aluminium
Indicator Green LED DC OK
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) < 40dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.53 kg (1.17 lb)	Dimensions 178 x 97 x 38 mm 7.01” x 3.82” x 1.50”

Operating Temperature

-10°C to +70°C

Storage Temperature

-25°C to +85°C

Power De-rating

> 50°C de-rate power by 2.5% / °C

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 time per direction, 2 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft)

Pollution Degree

Over Voltage Category

Overvoltage

< 63V, SELV Output, Hicc-up Mode, Non-Latching (Auto-Recovery)

Overload / Overcurrent

> 120% of rated load current, Hicc-up Mode, Non-Latching (Auto-Recovery)

Over Temperature

< 75°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

SIQ Bauart: EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395) UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1
CCC: GB/T9254, GB17625.1 and GB4943.1
UKCA: BS EN 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5KVac

Safety Entry Low Voltage

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

Emission

Generic Standards: CISPR 32, EN/BS EN 55032, FCC Title 47: Class B, GB9254

Immunity

Generic Standard: EN/BS EN 55024

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
