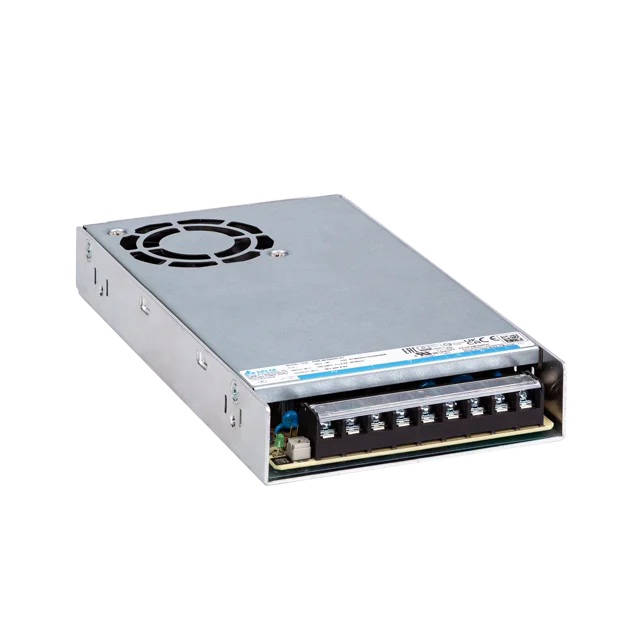

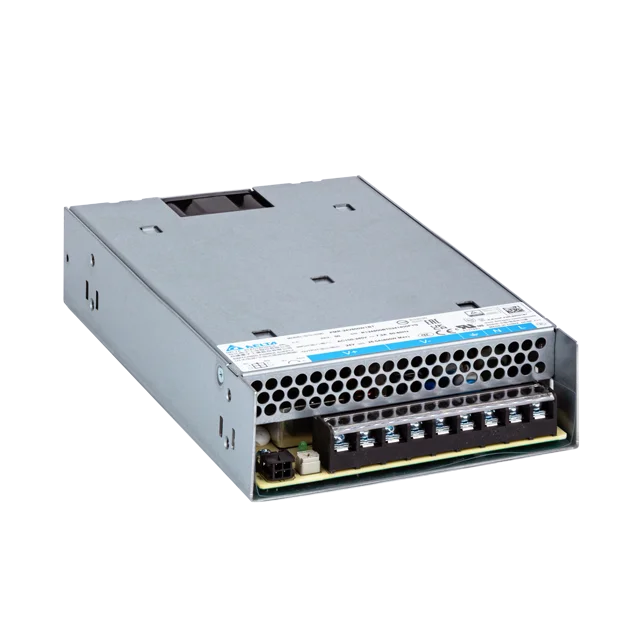

Delta PMR-12V320W1AT 12V 320W 26.7A Panel Mount PMR Series

Download

Datasheet

Uploaded on 16-Oct-2024

Manual

Uploaded on 05-Apr-2024


Uploaded on 23-Jul-2024

Mechanical Drawing

Uploaded on 19-Jul-2022

.DXF

Uploaded on 19-Jul-2022

.STP

Uploaded on 19-Jul-2022

Certificates

BSMI

Uploaded on 09-Jul-2024

Uploaded on 13-Jul-2022

CCC

Uploaded on 06-Mar-2024

CE & UKCA

Uploaded on 13-Jul-2022

EAC

Uploaded on 13-Jul-2022

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 13-Jul-2022

GUI Software

Tech Specs

Output Current

26.7A

Output Voltage

12V

Output Voltage Adjustment Range

10.8-13.2 Vdc

Output Power

320W

Line Regulation

± 0.5% typ. @ 115 Vac & 230 Vac

Load Regulation

±0.5% typ.

PARD

< 150 mVpp @ 0°C to 70°C
450 mVpp typ. @ -30°C to 0°C

Start-up Time

500 ms typ. @ 115 Vac & 230 Vac

Hold-up Time

16 ms typ. @ 115 Vac & 230 Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 10% @ 115 & 230 Vac input, 10-100% load (Slew Rate: 2.5 A/μS, 50% duty cycle @ 5 Hz & 10 KHz)

Start-up with Capacitive Loads

8,000 µF Max

Max. Power

320.4 W

Rise Time

30 ms typ. @ 115 Vac & 230 Vac

Nominal Input Voltage

100-240 Vac

Input Voltage Range

90-264 Vac

Nominal Input Frequency

50-60 Hz

Input Frequency Range

47-63Hz

DC Input Voltage Range

127-375 Vdc

Input Current

3.8 A typ. @ 115 Vac, 1.8 A typ. @ 230 Vac

Input Power (Standby Mode)

0.5 W max. @ 230 Vac

Efficiency at 100% load

90.5% typ. @ 230Vac

Inrush Current

50 A typ. @ 230 Vac

Power Factor at 100% load

> 0.96 @ 115 Vac & > 0.93 @ 230 Vac

Case Chassis / Cover Aluminum / SGCC
Indicator Green LED (DC OK)
Cooling System Force Cooling
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire AWG 18-12
Protection Structure -
Terminal M3.5 x 9 Pins (Rated 300 V / 20 A)
Unit Weight 0.643 kg (1.42 lb)	Dimensions 215 x 115 x 30 mm 8.46” x 4.53” x 1.18”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz @19.6 m/s2 (2G); 10 min per cycle, 60 min for each axis (X,Y,Z)

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11 ms, 3 shock for each 3 directions.

Operating Temperature

-30°C to +70°C ( -40°C Cold Start )

Storage Temperature

-40°C to +85°C

Power De-rating

> 50°C de-rate power by 2% / °C
< 100Vac de-rate power by 1% / V
(90% load @ 90 Vac)

Operating Humidity

20 to 90% (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11 ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09G); 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (0 to 16,400 ft)

Pollution Degree

Over Voltage Category

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Overvoltage

13.2 V - 16.8 V SELV Output, Latch Mode

Overload / Overcurrent

110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Protection Earth connection

MTBF

> 700,000 hrs as per Telcordia SR-332
I/P: 230 Vac, O/P: 100% Load, Ta: 25°C)

Expected Cap Life Time

10 years (230 Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 62368-1, EN 60335-1, EN 61558-1/-2-16
UL/cUL: UL 62368-1, and CAN/CSA C22.2 No. 62368-1
CB scheme: IEC 62368-1, IEC 60950-1, IEC 60335-1, IEC 61558-1/-2-16
EAC: TP TC 004/2011
BSMI: CNS 14336-1
CCC: GB 4943.1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 4.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 1.25 KVac

Safety Entry Low Voltage

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

(CE & RE)
CISPR 32, EN/BS EN 55032, KS C 9832, AS/NZS CISPR32, EN/BS EN 61000-6-4
Compliance to FCC Title 47, EN/BS EN 55014-1 , EN/BS 61000-6-3 : Class B

Immunity

EN/BS EN 55035, KS C 9835, EN/BS EN 61000-6-2 & Compliance to EN/ BS EN 55014-2 , EN/BS EN 61000-6-1

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A & Class D

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
