PMR-5V320WCAA

Panel Mount

PMR Series

PMR-5V320WCAA

Output Voltage

Output Power

300W

Output Current

60A

Input Voltage Range

88-264Vac

Dimensions (L x W x H)

215 x 115 x 30 mm

8.46” x 4.53” x 1.18”

Unit Weight

0.76 kg (1.68 lb)

Highlights & Features

Universal AC input voltage
Full corrosion resistant aluminium case and chassis
Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D
Low profile design for 1U installation and automatic fan speed control
High MTBF > 700,000 hrs. as per Telcordia SR-332
Short Circuit / Overvoltage / Overload / Over Temperature Protections

Optional Models

Model	Description
PMR-5V320WCGA	Front face connector

Applications

Panel Mount

PMR Series

PMR-5V320WCAA

Highlights & Features

Universal AC input voltage
Full corrosion resistant aluminium case and chassis
Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A and Class D
Low profile design for 1U installation and automatic fan speed control
High MTBF > 700,000 hrs. as per Telcordia SR-332
Short Circuit / Overvoltage / Overload / Over Temperature Protections

Output Voltage

Output Power

300W

Output Current

60A

Input Voltage Range

88-264Vac

Dimensions

215 x 115 x 30 mm

8.46” x 4.53” x 1.18”

Unit Weight

0.76 kg (1.68 lb)

Applications

Optional Models

Model	Description
PMR-5V320WCGA	Front face connector

Download

Datasheet

Uploaded on 06-May-2024

Manual

Uploaded on 22-Apr-2020


Uploaded on 06-Jun-2024

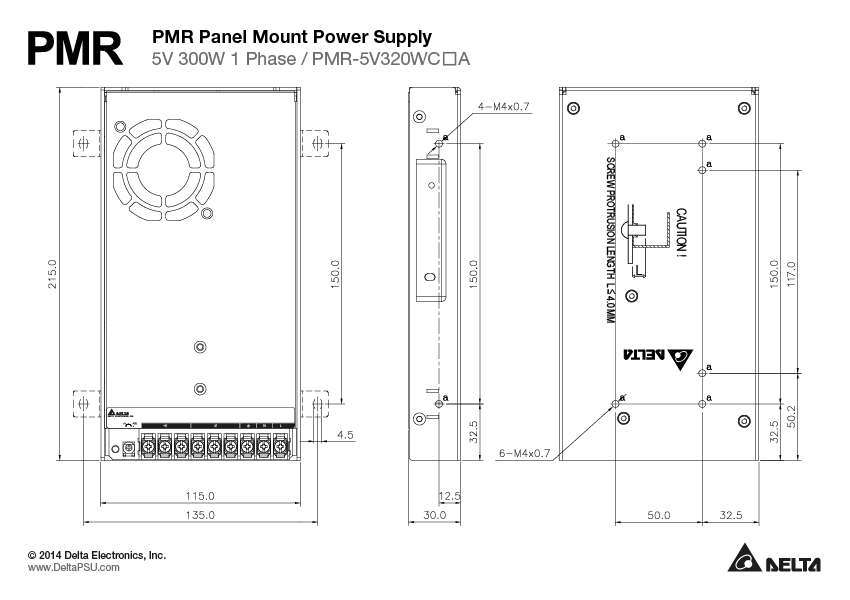

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 22-Apr-2020

CCC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Apr-2020

GUI Software

Tech Specs

Output Current

60A

Output Voltage

Output Voltage Adjustment Range

4.50-5.50Vdc

Output Power

300W

Line Regulation

± 0.5% typ. (@ 115Vac & 230Vac, 100% load)

Load Regulation

± 1.0% typ. (@ 115Vac & 230Vac, 0-100% load)

PARD

< 150mVpp@ 25°C
< 300mVpp @ -10°C

Start-up Time

3000ms typ. @ 115Vac,
1500ms typ. @ 230Vac (100% load)

Hold-up Time

8ms typ. @ 115Vac & 230Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 1500mVpp @ 10-50% load and 50-100% load

Start-up with Capacitive Loads

8,000μF Max

Nominal Input Voltage

100-240Vac

Input Voltage Range

88-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

< 4.50A@115Vac, < 2.50A @ 230Vac

Efficiency at 100% load

81.0% typ. @ 115Vac, 84.0% typ. @ 230Vac

Inrush Current

< 20A @ 115Vac, < 40A @ 230Vac

Power Factor at 100% load

0.98 typ. @ 115Vac, 0.95 typ. @ 230Vac

Leakage Current

< 0.5mA @ 240Vac

Case Chassis / Cover Aluminium
Indicator -
Cooling System Forced Cooling, automatic fan speed control
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.76 kg (1.68 lb)	Dimensions 215 x 115 x 30 mm 8.46” x 4.53” x 1.18”

Operating Temperature

-10°C to +70°C

Storage Temperature

-40°C to +85°C

Power De-rating

> 50°C de-rate power by 2.5% / °C
< 100Vac de-rate power by 2.08% / 1V

Operating Humidity

5 to 95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09Grms); 20 min per axis for all X, Y, Z direction

Overvoltage

5.75-7.50V, Latch Mode, Non-Latching

Overload / Overcurrent

105-150%, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Hiccup Mode, Non-Latching (Auto-Recovery)

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery)

Protection Against Shock

Class I with PE(Primary Earth) connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 100Vac, O/P: 100% load, Ta: 35°C

Electrical Safety

TUV Bauart to EN 60950-1, UL/cUL recognized to UL 60950-1 and CSA C22.2 No. 60950-1, CB scheme to IEC 60950-1, CCC to GB 4943

In conformance with EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC

Galvanic Isolation

Input to Output 3.0KVac
Input to Ground 2.0KVac
Output to Ground 0.5KVac

Emission

CISPR 22, EN 55022, FCC Title 47: Class B

Immunity

EN 55024

Harmonic Current Emissions

IEC/EN 61000-3-2, Class A and Class D

Voltage Fluctuation and Flicker

IEC/EN 61000-3-3
