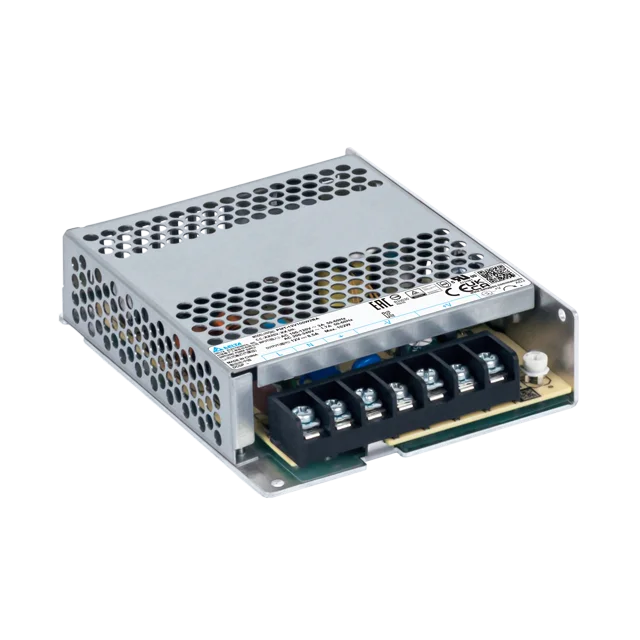

Delta PMT-12V100W2BA 12V 102W 8.5A Panel Mount PMT2 Series

Model	Description
PMT-12V100W2BAB	Single side conformal coating

Model	Description
PMT-12V100W2BAB	Single side conformal coating

Download

Datasheet

Uploaded on 02-Apr-2024

Manual

Uploaded on 06-May-2024


Uploaded on 06-Jun-2024

Mechanical Drawing

Uploaded on 15-May-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

BSMI

Uploaded on 22-Jul-2021

Uploaded on 16-Jan-2023

CCC

Uploaded on 24-Jan-2024

CE & UKCA

Uploaded on 21-Jun-2021

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 02-Jun-2020

Uploaded on 10-Aug-2021

GUI Software

Tech Specs

Output Current

8.5A

Output Voltage

12V

Output Voltage Adjustment Range

10.8-13.2Vdc

Output Power

102W

Line Regulation

± 0.5% (@ 115Vac & 230Vac input)

Load Regulation

± 0.5% (@ 115Vac & 230Vac input)

PARD

< 120mVpp @ 0°C to 70°C,
360mVpp typ. @ -30°C to 0°C

Start-up Time

500ms typ. @ 115Vac & 230Vac (100% load)

Hold-up Time

9ms typ. @ 115Vac, 42ms typ. @ 230Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 10% @ 115 & 230Vac input, 10-100% load (Slew Rate: 2.5A/μS, 50% duty cycle @ 5Hz & 10KHz)

Start-up with Capacitive Loads

8,000µF Max

Rise Time

30ms typ. @ 115Vac & 230Vac

Nominal Input Voltage

100-240Vac

Input Voltage Range

90-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

1.9A typ. @ 115Vac, 1.2A typ. @ 230Vac

Efficiency at 100% load

87.5% typ. @ 230Vac

Inrush Current

55A typ. @ 230Vac (Cold Start)

Leakage Current

< 0.5mA @ 240Vac

Case Chassis / Cover Aluminium / SGCC
Indicator Green LED (DC OK)
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.285 kg (0.63 lb)	Dimensions 129 x 97 x 30 mm 5.08” x 3.82” x 1.18”

Vibration (Operating)

IEC 60068-2-6, Sine Wave: 20Hz to 500Hz (5G);
10min per cycle, 60min for each axis (X, Y,Z)

Shock Test (Operating)

IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms, 3 shock for each 3 directions.

Operating Temperature

-30°C to +70°C (-40°C Cold Start)

Storage Temperature

-40°C to +85°C

Power De-rating

> 50°C de-rate power by 2% / °C
< 115Vac de-rate power by 0.6% / V
(85% load @ 90Vac)

Operating Humidity

20 to 90% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz (2.09G);
20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Pollution Degree

Over Voltage Category

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

Overvoltage

13.2V-17.4V SELV Output, Latch Mode

Overload / Overcurrent

110-175% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

Over Temperature

Latch Mode

Short Circuit

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with PE*4 connection

MTBF

> 700,000 hrs as per Telcordia SR-332
I/P: 230Vac, O/P: 100% Load, Ta: 25°C)

Expected Cap Life Time

10 years (230Vac, 50% load @ 40°C)

Electrical Safety

TUV Bauart: EN 62368-1, EN60335-1, EN 61558-1/-2-16
cULus: UL 62368-1 and CAN/CSA C22.2 No. 62368-1
CB scheme: IEC 62368-1, IEC 60950-1, IEC 60335-1, IEC 61558-1/-2-16
KC: K 60950-1
EAC: TP TC 004/2011
BSMI: CNS 14336-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output:4.0 KVac
Input to Ground: 2.0 KVac
Output to Ground:1.25 KVac

Safety Entry Low Voltage

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

Emission

(CE & RE)
CISPR 32, EN/BS EN 55032, EN/BS EN 61000-6-4, KN32, AS/NZS CISPR32
Compliance to EN/BS EN 55014-1, FCC Title 47, EN/BS EN 61000-6-3 : Class B

Immunity

EN/BS EN 55035, KN 35, EN/BS EN 61000-6-2
Compliance to EN/BS EN 55014-2,EN/BS EN 61000-6-1

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

(/3) Item(s) selected

PMT-12V100W2BA

Panel Mount

PMT2 Series

PMT-12V100W2BA

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

Unit Weight

Highlights & Features

Applications

PMT-12V100W2BA

PMT-12V100W2BA

Panel Mount

PMT2 Series

PMT-12V100W2BA

Highlights & Features

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions

Unit Weight

Applications

Download

Download

Tech Specs

Tech Specs

Looking for support for this product?

Looking for support for this product?

Related Products

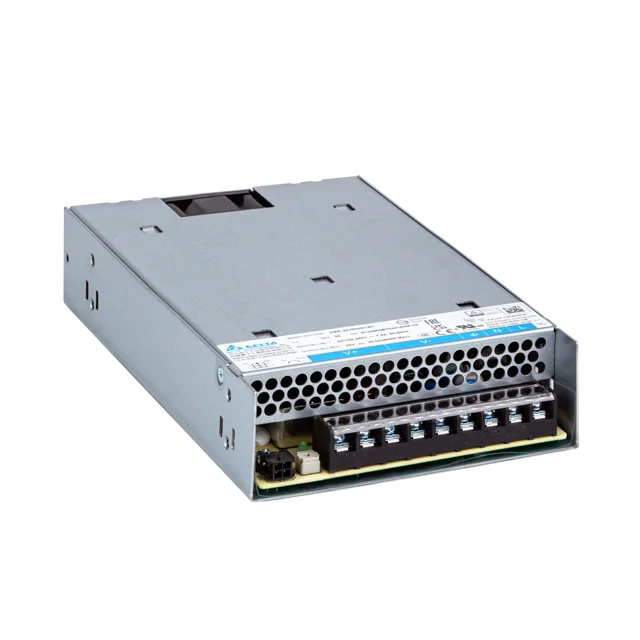

PMT-24V350W2BNJ

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

215 x 115 x 30 mm

8.46” x 4.53” x 1.18”

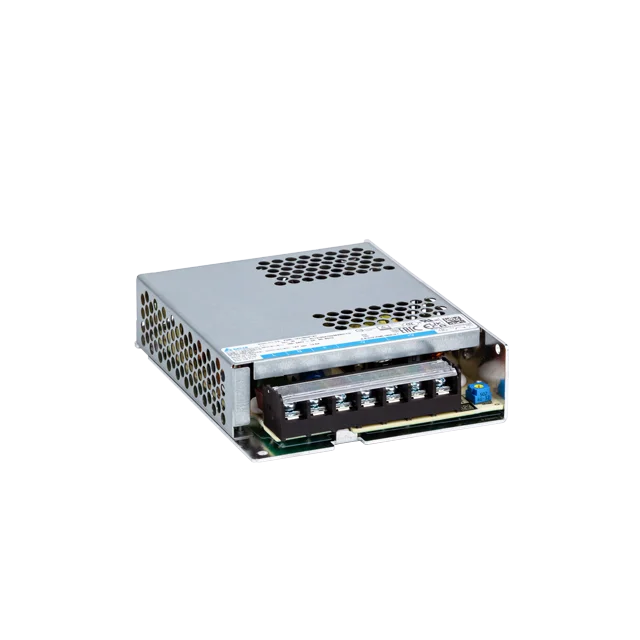

PMR-36V240W1AT

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

159 x 97 x 30 mm

6.26” x 3.82” x 1.18”

PMT-48V150W2BNJ

Output Voltage

Output Power

Output Current

Input Voltage Range

Dimensions (L x W x H)

159 x 97 x 30 mm

6.26” x 3.82” x 1.18”

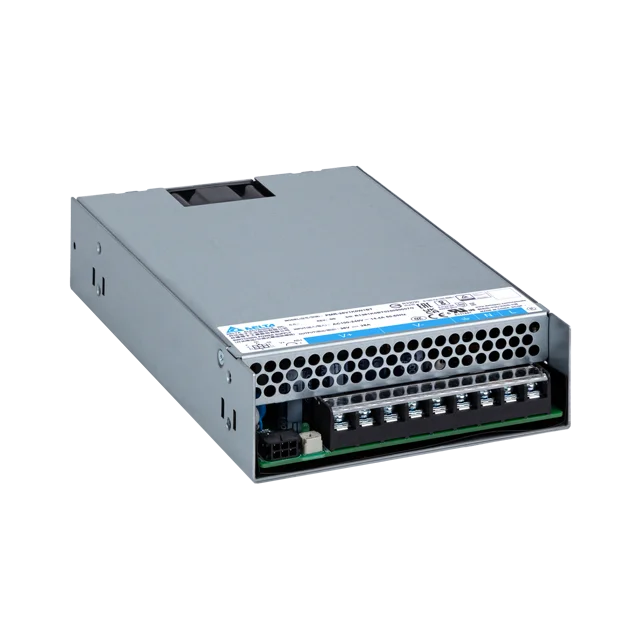

PMT-48V350W2BNJ
