PMT-24V200W1AM

Panel Mount

PMT Series

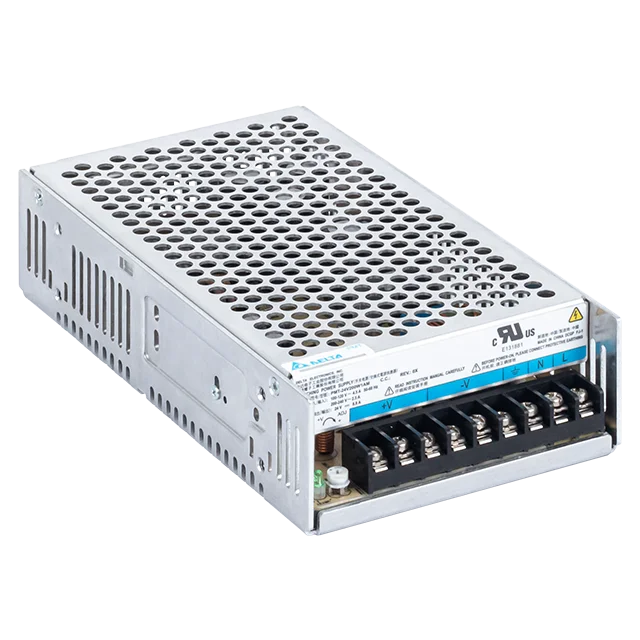

PMT-24V200W1AM

Output Voltage

24V

Output Power

211W

Output Current

8.8A

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Dimensions (L x W x H)

215 x 115 x 50 mm

8.46” x 4.53” x 1.97”

Unit Weight

0.63 kg (1.39 lb)

Highlights & Features

AC input voltage range selectable by switch
Full Aluminium casing for light weight and corrosion resistant handling
Convection cooling
Cold start -20°C at 100% load (200W)
Low leakage current < 0.25mA @ 240Vac
High MTBF > 700,000 hrs as per Telcordia SR-332
Short Circuit / Overvoltage / Overcurrent / Over Temperature Protections

** EOL **

PMT-24V200W1AM, PMT-24V200W1AMB, PMT-24V200W1AMZ

Recommended Model: PMT-24V200W2BR

Optional Models

Model	Description
PMT-24V200W1AN	Enclosed, front face connector
PMT-24V200W1AMB	Enclosed, terminal block, conformal coating

Applications

Panel Mount

PMT Series

PMT-24V200W1AM

Highlights & Features

AC input voltage range selectable by switch
Full Aluminium casing for light weight and corrosion resistant handling
Convection cooling
Cold start -20°C at 100% load (200W)
Low leakage current < 0.25mA @ 240Vac
High MTBF > 700,000 hrs as per Telcordia SR-332
Short Circuit / Overvoltage / Overcurrent / Over Temperature Protections

** EOL **

PMT-24V200W1AM, PMT-24V200W1AMB, PMT-24V200W1AMZ

Recommended Model: PMT-24V200W2BR

Output Voltage

24V

Output Power

211W

Output Current

8.8A

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Dimensions

215 x 115 x 50 mm

8.46” x 4.53” x 1.97”

Unit Weight

0.63 kg (1.39 lb)

Applications

Optional Models

Model	Description
PMT-24V200W1AN	Enclosed, front face connector
PMT-24V200W1AMB	Enclosed, terminal block, conformal coating

Download

Datasheet

Uploaded on 29-May-2025

Manual

Uploaded on 22-Apr-2020


Uploaded on 16-Aug-2025

Mechanical Drawing

Uploaded on 26-May-2022

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 17-Jan-2023

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 21-Apr-2021

Uploaded on 15-Dec-2020

GUI Software

Tech Specs

Output Current

8.8A

Output Voltage

24V

Output Voltage Adjustment Range

21.6-26.4Vdc

Output Power

211W

Line Regulation

± 0.5% typ. (@ 100-132Vac & 200-264Vac)

Load Regulation

± 0.5% typ. (@ 100-132Vac & 200-264Vac )

PARD

< 150mVpp

Start-up Time

1000ms typ. @ 115Vac & 230Vac (100% load)

Hold-up Time

20ms typ. @ 115Vac,
24ms typ. @ 230Vac

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 0-100% load

Start-up with Capacitive Loads

8,000µF Max

Rise Time

30ms typ. @ 115Vac, 20ms typ. @ 230Vac (100% load)

Nominal Input Voltage

100-120Vac, 200-240Vac (Selectable by Switch)

Input Voltage Range

90-132Vac, 180-264Vac (Selectable by Switch)

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

< 4.50A @ 115Vac,
< 2.50A @ 230Vac

Efficiency at 100% load

> 88.5% @ 230Vac

Inrush Current

< 55A @ 230Vac

Leakage Current

< 0.25mA @ 240Vac

Case Chassis / Cover Aluminium
Indicator -
Cooling System Convection
Input Terminal -
Output Terminal -
Signal Terminal -
Noise Sound Pressure Level (SPL) -
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 0.63 kg (1.39 lb)	Dimensions 215 x 115 x 50 mm 8.46” x 4.53” x 1.97”

Operating Temperature

-10°C to +60°C (Cold start at -20°C)

Storage Temperature

-25°C to +85°C

Power De-rating

> 40°C de-rate power by 2.5% / °C
< 100Vac de-rate power by 3% / 1V

Operating Humidity

5-95% RH (Non-Condensing)

Shock Test (Non-Operating)

IEC 60068-2-27, Half Sine: 50G for a duration of 11ms, 3 times for each 3 directions

Vibration (Non-Operating)

IEC 60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms, 20 min per axis for all X, Y, Z direction

Operating Altitude

0 to 5,000 Meters (16,400 ft.)

Pollution Degree

Over Voltage Category

Overvoltage

27.6-32.4V, Hicc-up Mode, Non-Latching (Auto-Recovery)

Overload / Overcurrent

105-150%, Hicc-up Mode, Non-Latching (Auto-Recovery)

Over Temperature

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with PE connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 100Vac, O/P: 100% load, Ta: 35°C

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1
UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 60950-1, IEC 62368-1

Galvanic Isolation

Input to Output: 3.0KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5KVac

Safety Entry Low Voltage

SELV (EN 60950-1)

Emission

(CE & RE)
CISPR 32, EN 55032, FCC Title 47: Class A
(With Delta EMI filter P/N: 10DKAW5)

Immunity

EN 55024
