PJ-12V30W

基板型

PJ シリーズ

PJ-12V30W

出力電圧

12V

出力電力

30W

出力電流

2.5A

入力電圧

85-264Vac

寸法 (L x W x H)

105 x 50 x 25.6 mm (Open Frame)
125 x 60 x 36 mm (Enclosed)
4.13” x 1.96” x 1.00” (Open Frame)
4.92" x 2.36" x 1.41" (Enclosed)

質量

0.11 kg (Open Frame)
0.20 kg (Enclosed) (0.24 lb)

特長&機能
  • Universal AC input voltage range
  • Low Inrush Current / Low Leakage Current
  • High efficiency
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • Conformal coating on PCBA to protect against chemical and dust pollutants
  • Versatile configuration options: Open Frame, L Frame, Enclosed
  • Long life capacitors


Model Description
PJ-12V30WBNA Open Frame
PJ-12V30WLNA L Frame
PJ-12V30WCNA Enclosed
アプリケーション


PJ-12V30W
PJ-12V30W

基板型

PJ シリーズ

PJ-12V30W

特長&機能
  • Universal AC input voltage range
  • Low Inrush Current / Low Leakage Current
  • High efficiency
  • Conforms to harmonic current IEC/EN 61000-3-2, Class A
  • Conformal coating on PCBA to protect against chemical and dust pollutants
  • Versatile configuration options: Open Frame, L Frame, Enclosed
  • Long life capacitors


出力電圧

12V

出力電力

30W

出力電流

2.5A

入力電圧

85-264Vac

寸法

105 x 50 x 25.6 mm (Open Frame)
125 x 60 x 36 mm (Enclosed)
4.13” x 1.96” x 1.00” (Open Frame)
4.92" x 2.36" x 1.41" (Enclosed)

質量

0.11 kg (Open Frame)
0.20 kg (Enclosed) (0.24 lb)

アプリケーション
Model Description
PJ-12V30WBNA Open Frame
PJ-12V30WLNA L Frame
PJ-12V30WCNA Enclosed

ダウンロード

ダウンロード

Datasheet

Uploaded on 23-Mar-2023

Manual

Uploaded on 22-Apr-2020


Uploaded on 06-Jun-2024

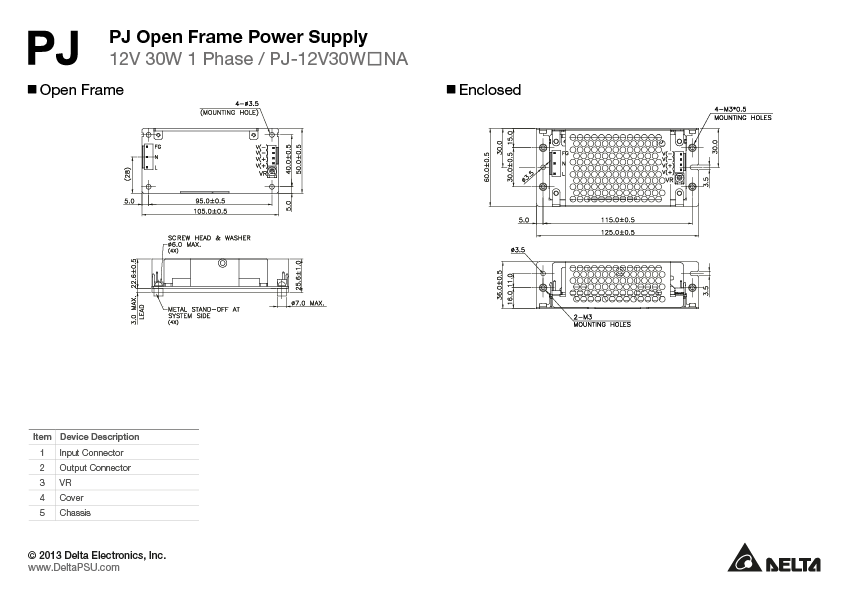

Mechanical Drawing
