PJ-24V50W

基板型

PJ シリーズ

PJ-24V50W

出力電圧

24V

出力電力

50W

出力電流

2.1A

入力電圧

85-264Vac

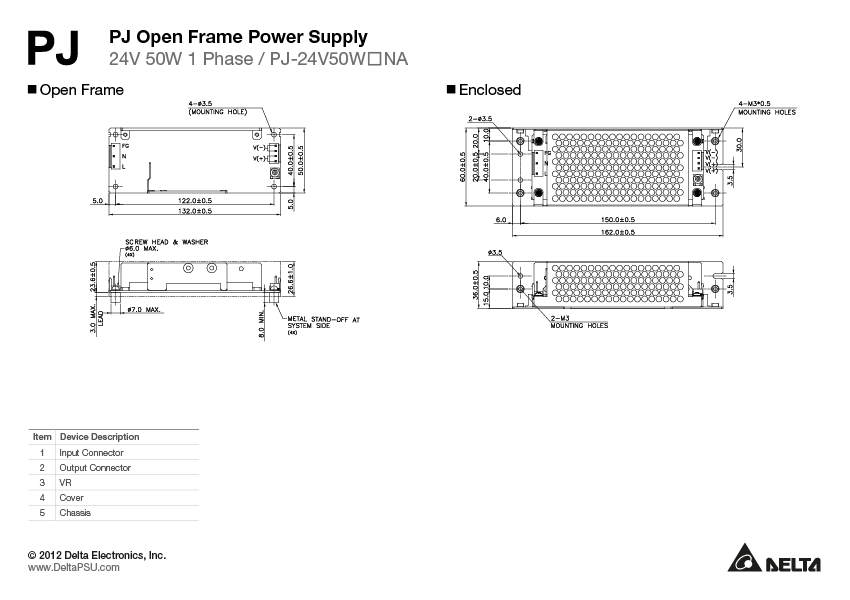

寸法 (L x W x H)

132 x 50 x 26.6 mm (Open Frame)
162 x 60 x 36 mm (Enclosed)
5.19" x 1.96" x 1.04" (Open Frame)
6.37" x 2.36" x 1.41" (Enclosed)

質量

0.16 kg (Open Frame)
0.28 kg (Enclosed) (0.35 lb)

特長&機能
  • Universal AC input voltage range (85Vac - 264Vac)
  • Low Inrush Current / Low Leakage Current
  • High efficiency and PF factor to conserve energy
  • Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A
  • Conformal coating on PCBA to protect against chemical and dust pollutants
  • Versatile configuration options: Open Frame, L Frame, Enclosed
  • Long life capacitors


Model Description
PJ-24V50WBNA Open Frame
PJ-24V50WLNA L Frame
PJ-24V50WCNA Enclosed
アプリケーション


PJ-24V50W
PJ-24V50W

基板型

PJ シリーズ

PJ-24V50W

特長&機能
  • Universal AC input voltage range (85Vac - 264Vac)
  • Low Inrush Current / Low Leakage Current
  • High efficiency and PF factor to conserve energy
  • Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A
  • Conformal coating on PCBA to protect against chemical and dust pollutants
  • Versatile configuration options: Open Frame, L Frame, Enclosed
  • Long life capacitors


出力電圧

24V

出力電力

50W

出力電流

2.1A

入力電圧

85-264Vac

寸法

132 x 50 x 26.6 mm (Open Frame)
162 x 60 x 36 mm (Enclosed)
5.19" x 1.96" x 1.04" (Open Frame)
6.37" x 2.36" x 1.41" (Enclosed)

質量

0.16 kg (Open Frame)
0.28 kg (Enclosed) (0.35 lb)

アプリケーション
Model Description
PJ-24V50WBNA Open Frame
PJ-24V50WLNA L Frame
PJ-24V50WCNA Enclosed
