PJ-12V30W

基板型電源

PJ 系列

PJ-12V30W

輸出電壓

12V

輸出功率

30W

輸出電流

2.5A

輸入電壓範圍

85-264Vac

尺寸 (L x W x H)

105 x 50 x 25.6 mm (Open Frame)
125 x 60 x 36 mm (Enclosed)
4.13” x 1.96” x 1.00” (Open Frame)
4.92" x 2.36" x 1.41" (Enclosed)

重量

0.11 kg (Open Frame)
0.20 kg (Enclosed) (0.24 lb)

亮點與特色

全球通用交流輸入電壓範圍
低浪湧電流／低接地漏電流
高轉換效率
符合諧波電流 IEC/EN 61000-3-2, Class A
PCBA 塗層保護，防化學和粉塵污染
多種配置選項：基板型電源、L 型框架電源、內置機殼型電源
長壽電容

Optional Models

Model	Description
PJ-12V30WBNA	Open Frame
PJ-12V30WLNA	L Frame
PJ-12V30WCNA	Enclosed

應用領域

基板型電源

PJ 系列

PJ-12V30W

亮點與特色

全球通用交流輸入電壓範圍
低浪湧電流／低接地漏電流
高轉換效率
符合諧波電流 IEC/EN 61000-3-2, Class A
PCBA 塗層保護，防化學和粉塵污染
多種配置選項：基板型電源、L 型框架電源、內置機殼型電源
長壽電容

輸出電壓

12V

輸出功率

30W

輸出電流

2.5A

輸入電壓範圍

85-264Vac

尺寸

105 x 50 x 25.6 mm (Open Frame)
125 x 60 x 36 mm (Enclosed)
4.13” x 1.96” x 1.00” (Open Frame)
4.92" x 2.36" x 1.41" (Enclosed)

重量

0.11 kg (Open Frame)
0.20 kg (Enclosed) (0.24 lb)

應用領域

Optional Models

Model	Description
PJ-12V30WBNA	Open Frame
PJ-12V30WLNA	L Frame
PJ-12V30WCNA	Enclosed

資源下載

Datasheet

Uploaded on 23-Mar-2023

Manual

Uploaded on 22-Apr-2020


Uploaded on 06-Jun-2024

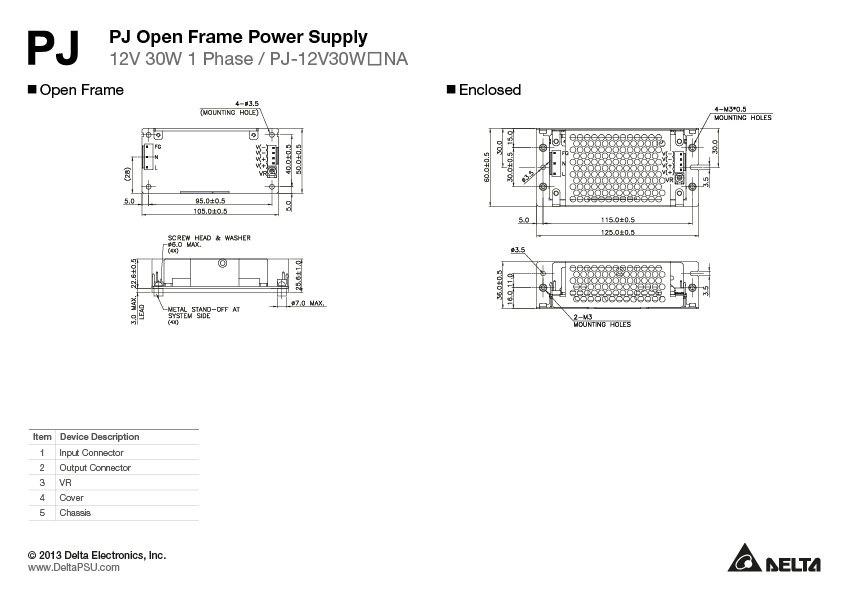

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

認證

Uploaded on 18-Jan-2023

CCC

Uploaded on 13-Jul-2020

CE & UKCA

Uploaded on 07-Jul-2021

CQC

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 18-Nov-2020

Uploaded on 15-Dec-2020

GUI Software

Tech Specs

輸出電流

2.5A

輸出電壓

12V

輸出電壓調整範圍

10.8-13.2V

輸出功率

30W

線電壓調整率

< 48mV

負載調整率

< 100mV

開機時間

500 ms typ. @ 100 Vac

保持時間

20ms typ. @ 100Vac

動態回應

± 5% @ 0-50% load and 50-100% load

電容性負載啟動

8,000µF Max

波紋與噪音

< 150mVpp @ 0°C to 50°C,
< 180mVpp @ -10°C to 0°C

額定輸入電壓

100-240Vac

輸入電壓範圍

85-264Vac

額定輸入頻率

50-60Hz

輸入頻率範圍

47-63Hz

輸入電流

0.65A typ. @ 100Vac,
0.35A typ. @ 200Vac

100% 負載效率

83.0% typ. @ 100Vac,
85.0% typ. @ 200Vac

浪湧電流

15A typ. @ 100Vac,
30A typ. @ 200Vac

漏電流

0.1mA @ 100Vac,
0.2mA @ 230Vac

底架 / 外殼 SGCC
指示燈 -
冷卻方式 Convection
輸入端 JST B3P5-VH (LF)(SN)
輸出端 JST B4P-VH (LF)(SN)
信號端 -
聲壓級（SPL） -
輸入/輸出端 -
信號 -
安裝導軌 -
電線 AWG 22-18
保護結構 -
端子台 -
重量 0.11 kg (Open Frame) 0.20 kg (Enclosed) (0.24 lb)	尺寸 105 x 50 x 25.6 mm (Open Frame) 125 x 60 x 36 mm (Enclosed) 4.13” x 1.96” x 1.00” (Open Frame) 4.92" x 2.36" x 1.41" (Enclosed)

振動測試（運行狀態）

IEC 60068-2-6, 10Hz to 55Hz @ 19.6 m/S² (2G); 60 min per axis for all X, Y, Z direction

運行溫度

-10°C to +70°C

儲存溫度

-25°C to +75°C

功率降額

> 50°C de-rate power by 2.5% / °C,
< 90Vac de-rate power by 2% / V

運行濕度

5 to 90% RH (Non-Condensing)

衝擊測試（非運行狀態）

IEC60068-2-27,196.1m/S² (20G), 11ms, once along X, Y, and Z axis

運行高度

0 to 5,000 Meters (16,400 ft.)

過壓保護

13.8-16.8V, Latch Mode

超負載/過電保護

> 105% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery)

過溫保護

Latch Mode

短路保護

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

電擊防護等級

Class I with PE(Primary Earth) connection

MTBF

> 200,000 hrs. as per JEITA RCR-9102B

預計最長使用壽命

10 years (115Vac, 50% load @ 40°C)

電氣安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized:UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881) UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

電隔離

Input to Output 3.0KVac
Input to Ground 2.0KVac
Output to Ground 0.5KVac

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

輻射與傳導

CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B

抗擾度

EN/BS EN 55024

諧波電流排放

IEC/EN/BS EN 61000-3-2, Class A

電壓波動和閃變

IEC/EN/BS EN 61000-3-3
