PJT-27V150WBNA

开架型电源

PJT 系列

PJT-27V150WBNA

输出电压

27V,12V

输出功率

150W

输出电流

5.55A,0.5A

输入电压范围

85-264Vac

尺寸 (L x W x H)

127.6 x 76.2 x 36.5 mm

5.02” x 3.00” x 1.44”

重量

0.37 kg (0.82 lb)

亮点与特色

Universal AC input voltage
Standard industrial footprint of 3” x 5”
Built-in active PFC with up to 89.5% efficiency
Power Boost 6.48A (175W) at 27V for 5 seconds
Conforms to harmonic current IEC/EN 61000-3-2, Class A
Convection cooled 150Watt operating temperature range from -10°C to +50°C
Built-in standby output 12V/0.5A
High MTBF > 700,000 hrs as per Telcordia SR-332

** NRND **

PJT-27V150WBNA

Recommended Model: PMT-12V350W2BR

应用领域

开架型电源

PJT 系列

PJT-27V150WBNA

亮点与特色

Universal AC input voltage
Standard industrial footprint of 3” x 5”
Built-in active PFC with up to 89.5% efficiency
Power Boost 6.48A (175W) at 27V for 5 seconds
Conforms to harmonic current IEC/EN 61000-3-2, Class A
Convection cooled 150Watt operating temperature range from -10°C to +50°C
Built-in standby output 12V/0.5A
High MTBF > 700,000 hrs as per Telcordia SR-332

** NRND **

PJT-27V150WBNA

Recommended Model: PMT-12V350W2BR

输出电压

27V,12V

输出功率

150W

输出电流

5.55A,0.5A

输入电压范围

85-264Vac

尺寸

127.6 x 76.2 x 36.5 mm

5.02” x 3.00” x 1.44”

重量

0.37 kg (0.82 lb)

应用领域

资源下载

Datasheet

Uploaded on 28-Oct-2021

Manual

Uploaded on 11-Sep-2020


Uploaded on 30-Mar-2025

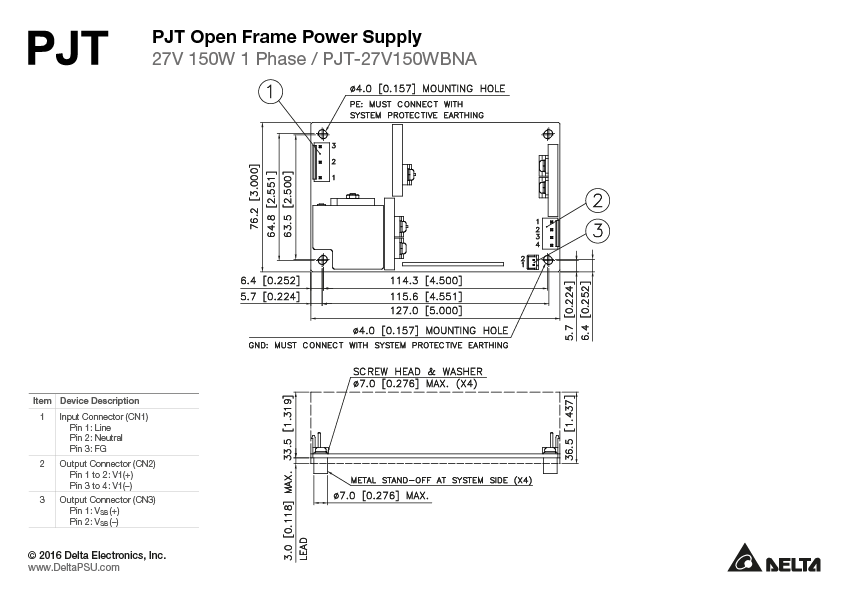

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 03-Dec-2020

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 08-May-2024

RoHS

Uploaded on 27-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 03-Dec-2020

UKCA

Uploaded on 28-Oct-2021

Uploaded on 03-Dec-2020

GUI Software

Tech Specs

输出电流

5.55A,0.5A

输出电压

27V,12V

输出功率

150W

线电压调整率

< 0.5% (@ 90-264Vac input, 100% load)

负载调整率

< 1.0% (@ 90-264Vac input, 0-100% load)

纹波电压

V1: < 150mVpp, VSB: < 75mVpp

开机时间

< 1500ms @ 115Vac & 230Vac (100% load)

保持时间

> 40ms@ 115Vac & 230Vac (100% load)

动态回应

± 5% @ 85-264Vac input, 0-100% load
(Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 1KHz)

电容性负载启动

V1: 3,000uF Max, VSB: NA

升压时间

< 100ms @ 115Vac & 230Vac (100% load)

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

< 1.80A @115Vac, < 0.9A @ 230Vac

100% 负载效率

> 88.5% @ 115Vac , > 89.5% @ 230Vac

涌入电流

< 50A@115Vac, < 100A@ 230Vac

功率因数

> 0.99 @ 115Vac, > 0.93 @ 230Vac

漏电流

< 0.25mA@264Vac

功率损耗

No Load: < 0.4W @ 115Vac, < 0.6W @ 230Vac
100% Load: < 17W @ 115Vac, < 19W @ 230Vac

底座 / 外壳上盖 -
指示灯 -
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.37 kg (0.82 lb)	尺寸 127.6 x 76.2 x 36.5 mm 5.02” x 3.00” x 1.44”

振动测试（运行状态）

IEC 60068-2-6, 10Hz to 150Hz @ 25m/S? (2.5G peak); displacement of 0.35mm; 90 min per axis for all X, Y, Z direction

运行温度

-10°C to +70°C

储存温度

-40°C to +85°C

功率降级

Temperature: > 50°C de-rate power by 2.5% / °C
Input Voltage: < 90Vac de-rate power by 2.0% / °C

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, Half Sine 50G for a duration of 11ms, 3 times per direction, 9 times in total

运行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

过压类别

过压保护

V1: < 36V, SELV Output, Latch Mode
VSB: < 19V, SELV Output, Hiccup Mode, Non-Latching (Auto-Recovery)

超负载/过电保护

Hiccup Mode, Non-Latching (Auto-Recovery)
- V1: Range of 7.5-8.8A, when VSB is operating at rated output current. Protects only V1 and VSB continues operate
- VSB: Range of 0.6-1.1A, when V1 is operating at rated output current. Protects only VSB an

过热保护

< 75°C Surrounding Air Temperature @ 100% load, Only V1 shuts down in Latch Mode, VSB continuous to operate

短路保护

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)
- V1: short circuit, VSB: still continuously operating
- V1: still continuously operating, VSB: short circuit

防震保护

Class I with PE connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

预计最长使用寿命

10 years (115Vac & 230Vac, 50% load @ 40°C)

电气安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1
UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0KVac
Input to FG: 1.5KVac
Output to FG: 0.5KVac

安全特低电压

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

排放

Generic Standards: CISPR 22, CISPR 32, EN/BS EN 55022,
EN/BS EN 55032, FCC Title 47: Class B

抗扰度

Generic Standards: EN/BS EN 55024

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A

电压波动和闪变

IEC/EN/BS EN 61000-3-3
